Advanced SB 28 Disc Brakes - Pintsch Bubenzer

Name: Advanced SB 28 Disc Brakes - Pintsch Bubenzer
Brand: Clutch Engineering
SKU: CLU-a6a767
Price: 2899.99 USD
Availability: OutOfStock

SKU:CLU-a6a767

Experience precision and reliability with SB 28 Disc Brakes - Pintsch Bubenzer. Patented self-centering levers, sintered linings, and adjustable spring for superior performance.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SB 28 Disc Brakes by Pintsch Bubenzer are engineered with patented self-centering brake levers, automatic wear compensation, and sintered linings for high-speed friction performance. Featuring maintenance-free bushings, stainless steel components, and an enclosed adjustable brake spring, these brakes offer superior reliability and durability for diverse applications. With a symmetrical design and W-execution anti-corrosion protection, these brakes ensure optimal performance in challenging conditions, making them a top choice for industrial and institutional settings.

Product Specifications

Features 0

Patented self-centering of brake leversAutomatic wear compensatorSintered linings for high friction speedsStainless steel pins and spindlesMaintenance free bushings in all hinge pointsAdjustable, enclosed brake spring with torque scale and wear bushing in the spring tubeSymmetric designW-execution (special anti-corrosion protection)

Note 0

If ordered with manual release lever.Alterations reserved without notice.

Options 0

Limit switch release controlLimit switch wear controlLimit switch manual releaseManual release lever with or without stopMonitoring systems (e.g. VSR/CMB)Brake discs with hubs or couplings

Specifications Actuation

Spring Applied, Electric Release

Specifications Brake Torque Mbr For 19500 N

4700 Nm

Specifications Brake Torque Mbr For 31500 N

7600 Nm

Specifications Brake Torque Mbr For 46000 N

11200 Nm

Specifications Brake Torque Mbr For 62500 N

15250 Nm

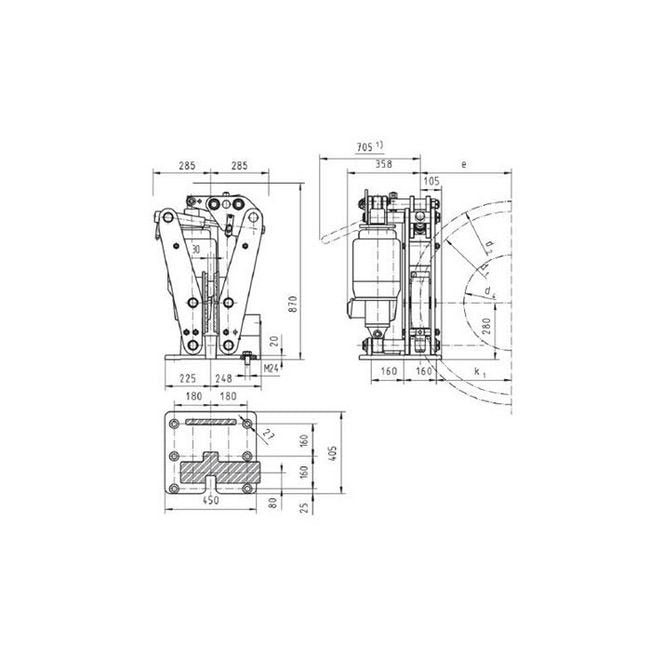

Specifications Dimension D4

460 mm

Specifications Dimension E

305 mm

Specifications Dimension K1

225 mm

Specifications Disc D2

710 mm

Specifications Friction D1

610 mm

Specifications Friction Factor

0.4

Specifications Manufacturer

Pintsch Bubenzer

Specifications Thruster Type

Ed 121/6 for 19500 N Contract Force | Ed 201/6 for 31500 N Contract Force | Ed 301/10bb for 62500 N Contract Force | Ed 301/6 for 46000 N Contract Force

Specifications Weight Without Thruster

220 kg
