Advanced Silicon Monoxide Box Source (SO Series)
Advanced Silicon Monoxide Box Source (SO Series)
SKU:BAF-203857
Enhanced SO Series silicon monoxide source for precise depositions, longer lifespan, and leakage elimination.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Advanced Silicon Monoxide Box Source (SO Series)
$89.99
Quantity: 1
Claim Your Seller Account
Advanced Silicon Monoxide Box Source (SO Series)
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

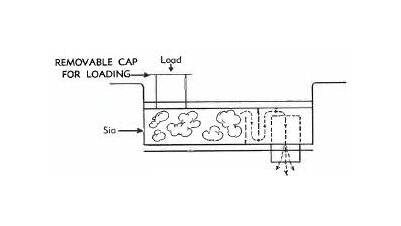

The Advanced Silicon Monoxide Box Source (SO Series), an evolution of our successful SM series, features advanced baffling and shielding for enhanced performance. This design ensures an indirect path from source material to substrate, offering a longer lifespan, leakage elimination, and seamless loading without system removal. With completely sealed one-unit construction, this source is a reliable choice for precise deposition processes in research and industrial applications.
Product Specifications
Features 0
The new SO Series silicon monoxide source offers the following features: Longer lifeEliminates leakageLoading without removal from system and âcompletely sealedâ one unit construction.
Manufacturing Notes 0
Large SO Series Sources available on request

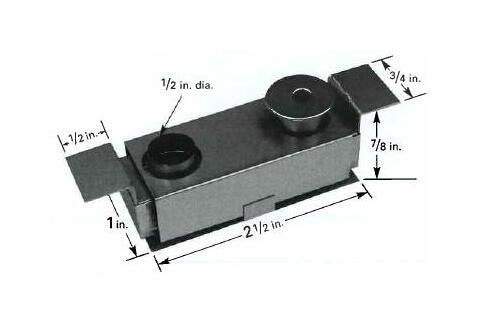

Specifications Base Length
2 1/2 in
Specifications Evaporation Direction
Down
Specifications Height
7/8 in
Specifications Hole Diameter
1/2 in
Specifications Material Weight
6.5 g
