Advanced Silicon Monoxide Box Sources
Advanced Silicon Monoxide Box Sources
SKU:BAF-65fc42
Upgrade your thin-film deposition with advanced Silicon Monoxide sources for longer lifespan, leakage prevention, and seamless loading. Ideal for efficient substrate material transfer.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Advanced Silicon Monoxide Box Sources
$349.99
Quantity: 1
Claim Your Seller Account
Advanced Silicon Monoxide Box Sources
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your thin-film deposition processes with the cutting-edge SO Series Silicon Monoxide Box Sources. Designed as an upgrade over the successful SM series, these sources feature advanced baffling and shielding for indirect material transfer, ensuring optimal performance and longevity. The completely sealed one-unit construction allows for convenient loading without system removal, preventing leakage and enhancing operational efficiency. Experience longer lifespan and superior quality with our state-of-the-art Silicon Monoxide sources.
Product Specifications
Features 0

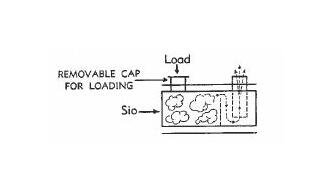

The new SO Series silicon monoxide source offers the following features: Longer lifeEliminates leakageLoading without removal from system and âcompletely sealedâ one unit construction.
Manufacturing Notes 0
Large SO Series Sources available on request

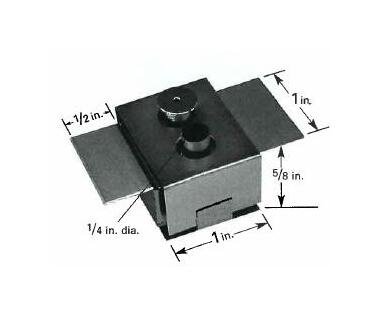

Specifications Base Length
1 in
Specifications Current
333 A
Specifications Evaporation Direction
Up
Specifications Height
5/8 in
Specifications Hole Diameter
1/4 in
Specifications Material Weight
1.5 g
Specifications Power
286 W
