Advanced StrainSmart Data Acquisition System
Advanced StrainSmart Data Acquisition System
SKU:STR-9d94c8
Precision data acquisition system for strain gages & sensors, up to 2000 S/s, NIST-traceable calibration, ideal for stress analysis
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Advanced StrainSmart Data Acquisition System
$4,999.99
Quantity: 1
Claim Your Seller Account
Advanced StrainSmart Data Acquisition System
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

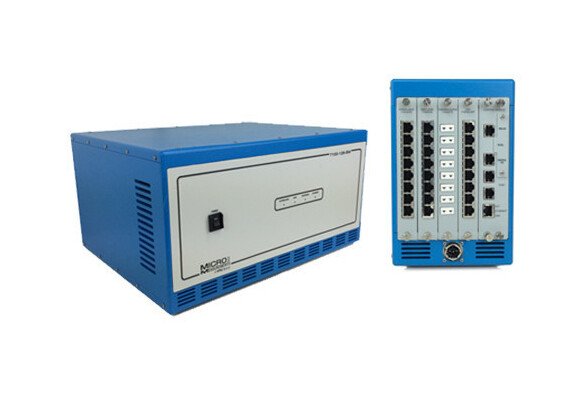

The Advanced StrainSmart Data Acquisition System offers precise and stable signal conditioning for strain gages, thermocouples, LVDTs, and sensors with high-level voltage outputs. With features like built-in bridge completion, scalable synchronized system, and self-calibration traceable to NIST standards, this high-performance system ensures accurate data acquisition at up to 2000 samples per second. Ideal for stress analysis testing, the system supports up to 128 sensor channels in a compact rack-mountable design, with RJ45 connectors for fast assembly. The included StrainSmart software enables intuitive setup, control, and data acquisition, making it a reliable solution for institutional and government procurement requirements.
Product Specifications
Ordering Information Ordering Information
7100 Input Cards 7100-8-SG - 8-Channel Strain Gage Input Card 7100-8-TC - 8-Channel Thermocouple Input Card 7100-8-HL - 8-Channel High Level Input Card 7100-8-LVDT - 8-Channel LVDT Card | 7100 Scanner Enclosures 7100-128-SM - 128-Channel Scanner 7100-32-SM - 32-Channel Scanner
Specifications Ad Converter
24 bit Delta-Sigma
Specifications Bridge Completion
120 Ohm, 350 Ohm, 1000 Ohm, internal HB 1K Ohm
Specifications Bridge Types
¼ , ½ , Full Bridge
Specifications Connection
RJ45
Specifications Data Rate
Up to 2000 S/s
Specifications Excitation
High Level: ±0-12 VDC | Strain Gage: 0-10 VDC (SW Selectable)
Specifications Input Type
Strain, High-level, LVDT, Thermocouple (specific hardware module per type)
Specifications Max Channels Multiple Units
Unlimited (with the Sync cable length limit)
Specifications Max Input
±155 mV/V @ GF = 2.0
Specifications Max Storage
8 GB (2GB per file max)
Specifications Measurement Range
25,000 - 310,000 µm/m @ GF=2.00
Specifications Power
11-32 VDC, 40 A max, or Main power supply
Specifications Resolution
0.5µm/m @ GF=2.00
Specifications Self Calibration
Yes â with integrated VCAL Module
Specifications Software
StrainSmart 7100 .NET API
