Advanced Voltage/IEPE/ICP Data System
Advanced Voltage/IEPE/ICP Data System
SKU:TUR-c0f52c
High-performance turnkey system for precise data acquisition in portable applications.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Advanced Voltage/IEPE/ICP Data System
$4,999.99
Quantity: 1
Claim Your Seller Account
Advanced Voltage/IEPE/ICP Data System
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

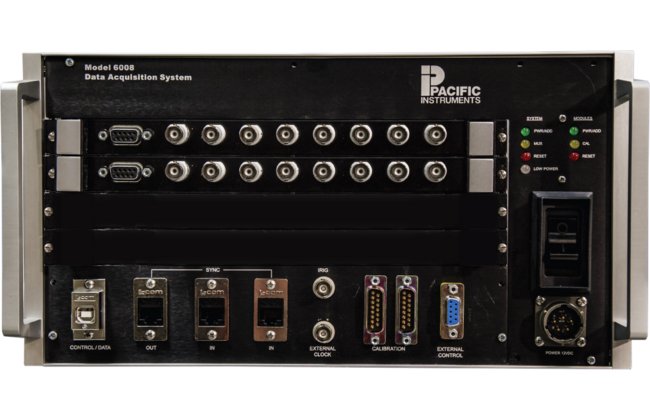

The Advanced Voltage/IEPE/ICP Data System is a turnkey solution designed for precise measurement and analysis. With options for 8 to 32 channels, 16-bit digitizer per channel, and a sample rate of up to 200kS/s, this system offers high-performance data acquisition. Featuring front-mounted BNC inputs, AC/DC coupling, and IRIG time synchronization options, this system is ideal for portable applications. The included PI660 Turnkey Software ensures easy setup and real-time data display, while the DC power capability allows for mobile use. Expandable and customizable to fit changing test requirements, this system provides reliable and accurate data recording.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Amplifier Analog Output Amplifier
±10 Volts full scale, 20 mA. Programmable for wideband or filtered response.Buffered Analog Output.
Amplifier Bandwidth
DC to 100 kHz (-3 dB). 1 Hz to 100 kHz (-3 dB) in AC coupled mode.
Amplifier Cm Voltage
±10 V
Amplifier Common Mode
60 dB plus gain in dB to 110 dB, DC to 60 Hz.
Amplifier Gain
Programmable 1 to 5000, in 1, 2, 3, 5 steps, with ±0.05% accuracy
Amplifier Gain Stability
±0.01%, ±0.005%/ºC.
Amplifier Linearity Amplifier
±0.01% for Gains < 1,000, ±0.02% for gains > 1,000.
Amplifier Noise X1
0.2 mV RMS for 20 kHz bandwidth.
Amplifier Noise X1000
2.8 mV RMS for 20 kHz bandwidth.
Amplifier Slew Rate
3.2 V/µS
Amplifier Zero
Automatic to ±1 mV.
Amplifier Zero Stability X1
±1 mV, ±0.2 mV/ºC
Amplifier Zero Stability X1000
±5 mV, ±1 mV/ºC
Calibration Voltage Substitution
Alternate input for external calibration source. Programmable 1, 0.1 and 0.01, attenuation with ±0.02% accuracy. Attenuator output may be connected to output bus for accuracy check.
Calibration Zero Calibration
Amplifier input disconnected and shorted for zero calibration.
Connections Calibration
15-Pin Type D mounted on rear panel. Mating connector supplied.
Connections Control
15-Pin Type D mounted on rear panel. Mating connector supplied.
Connections Synchronization
Sampling clock synchronization for multiple rack systems. RJ45 connector on controller board. Category 5, 2-meter cable supplied.
Connections Usb
2-meter cable supplied.
Data Format Data Word
16 or 32-bits, 2's complement binary
Data Format Sample Rates
Multiple sample rates consisting of the highest sample rate divided by binary numbers. Highest sample rate is programmable with 1 uS resolution
Data Format Scan Table
Maximum format length is 65,536 samples
Data Interface Clock Stability
100 ppm over temperature range
Data Interface Latency
Processor and scan table dependent, typically less than 5 milliseconds
Data Interface Output Rate
Processor dependent, typically over 5 million 16-bit samples/second
Digitizer Continuity
Monotonic to 15 bits.
Digitizer Digitizer Linearity
±1-1/2 LSB (±0.004%)
Digitizer Rate
Programmable up to 200 kS/s digitizer per channel.
Excitationtransducer Power Current
2 to 20 mA. 6 mA is supplied unless otherwise specified.
Excitationtransducer Power Minimum Compliance
24 V
Excitationtransducer Power Verification
Short and open detection.
Excitationtransducer Power Voltage
±12 or ±15 Volts jumper selectable per channel, ±24 also available.
Mechanical Depth
16.7 in
Mechanical Height
10.5 in
Mechanical Power Input
10 to 20 VDC. (21 to 32 VDC available on special order)
Mechanical Width
13.4 in
Operators Workstation Pccowu Lt Optional Power
115 or 230 VAC, 47 to 63 Hz.
Operators Workstation Pccowu Lt Optional Size
Laptop (other configurations available)
Overview Analog Bandwidth
100 kHz
Overview Excitationtransducer Power
+/-12V | +/-15V | 24V | ICP
