AERZEN GM High Pressure Rotary Lobe Gas Blowers
AERZEN GM High Pressure Rotary Lobe Gas Blowers
SKU:GMH-d41d8c
Powerful and reliable rotary lobe gas blowers for high-pressure applications. Efficient, durable, and compliant with industry standards.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
AERZEN GM High Pressure Rotary Lobe Gas Blowers
$4,999.99
Quantity: 1
Claim Your Seller Account
AERZEN GM High Pressure Rotary Lobe Gas Blowers
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

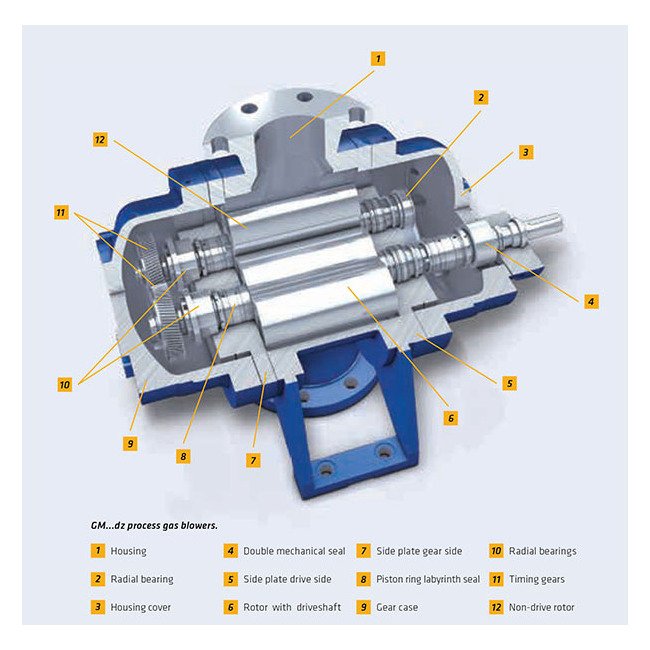

The AERZEN GM High Pressure Rotary Lobe Gas Blowers are precision-engineered machines designed for high-performance gas transport and compression. Available in single or multi-stage configurations, these blowers feature separate pressurized oil lubrication for efficient and oil-free operation with gas mixtures, air, and neutral gases. Built from advanced materials like stainless steel for oxygen service (BAM regulations) and as acetylene boosters (TRAC norms), these robust rotary lobe blowers offer exceptional reliability and durability for a wide range of industrial applications.
Product Specifications
Specifications Applications
Nitrogen boosting | Acetylene boosting (TRAC) | Oxygen (BAM) | Closed loop recycle/boosting | Refrigeration loops | Kiln pressure test bed | Ammonia boosting
Specifications Conveying Direction
Vertical
Specifications Differential Pressure
30 psi (2 bar) per stage
Specifications Materials And Coatings
Standard materials with electroless nickel plating | Material options (Recommended for ZLD Crystallizer): Ni-Resist D2B housing | Stainless steel rotors
Specifications Media
Oxygen, acetylene, gas mixtures, air, and neutral gases
Specifications Models Available
GM 11.2 | GM 13.6 | GM 15.10 | GM 16.12 | GM 17.14
Specifications Package Options
Direct, belt, or gearbox drive | Controls and instrumentation | Special sound enclosures: High wind, snow, seismic loads, winter, desert, or harsh loads environments
Specifications Performance And Characteristics
~2:1 Pressure ratio, up to 15 psi (1000 mbar) pressure difference 3 lobes with patented integral pulsation cancellation
Specifications Positive Pressure
cz models up to 230 psig/16 barg | dz models up to 360 psig/25 barg | ez models up to 580 psig/40 barg | fz models up to 925 psig/64 barg

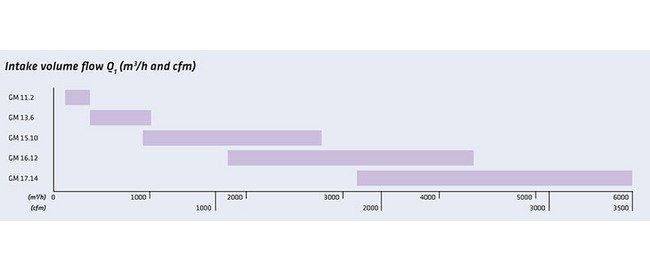

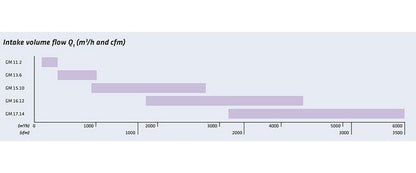

Specifications Volume Flow Range
35 to 8,500 cfm | 60 to 14,000 m3/h
