AFM CH-100 Tamper Evident Band Applicator
AFM CH-100 Tamper Evident Band Applicator
SKU:CH1-1cc339
Efficiently apply tamper evident bands with AFM's CH-100 Applicator. Fast, accurate, and durable for various industries.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

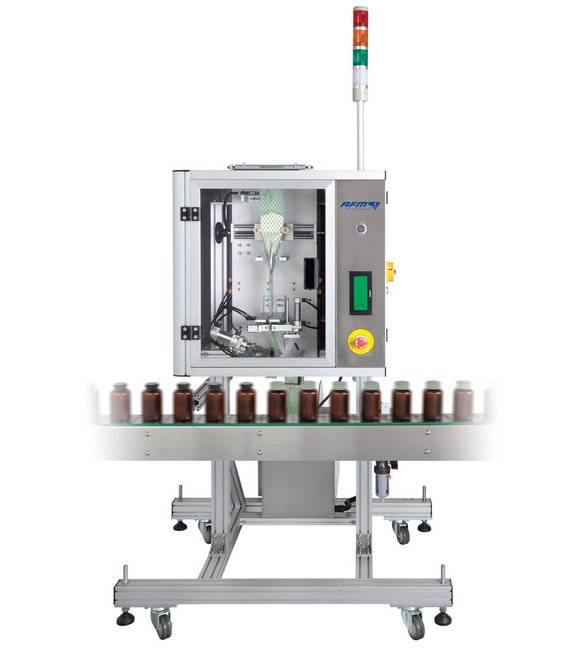

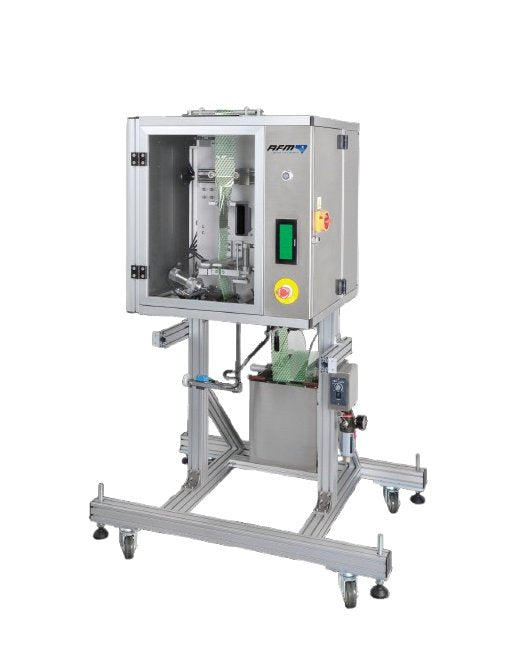

The AFM CH-100 Tamper Evident Band Applicator is an economy-level shrink band applicator designed for low to moderate production rates. Engineered for 24-hour operation, it features a fast butterfly mandrel style design for efficient workflow and 304-grade stainless steel construction for durability. With a user-friendly touch-screen interface, quick film change system, and stepper motor-driven components, the CH-100 ensures accurate and consistent tamper band application at speeds up to 120BPM. Perfect for industries like food, pharmaceuticals, and consumer goods, this machine offers a rugged design and lower cost of ownership.
Product Specifications
Around The Clock Operation Around The Clock Operation
CH-100 Tamper Band Applicators are designed with stepper motor driven, single film unwind with tension control, cutter assembly, and pneumatic cylinder to provide accurate and consistent tamper band application. CH-100 has been engineered to handle round bottles made of plastic, glass, or metal at speeds of up to 120BPM.The single blade guillotine cutting mechanism provides extremely smooth, even cutting of PVC/PETG film 50 or 70 microns in thickness.
Industrial Design Industrial Design
The CH-100 is a fast and efficient butterfly mandrel style tamper band applicator engineered to meet the demand of your workflow. Designed for 24 hour operation, CH-100's simple and low maintenance design allows for quick film change and maximum uptime. CH-100's compact housing is constructed from 304 grade stainless steel and anodized aluminum to provide strength and reduce vibration while offering quiet operation. Product runs are programmed with the user-friendly touch-screen control interface, making setup and operation fast and easy.
Note Note

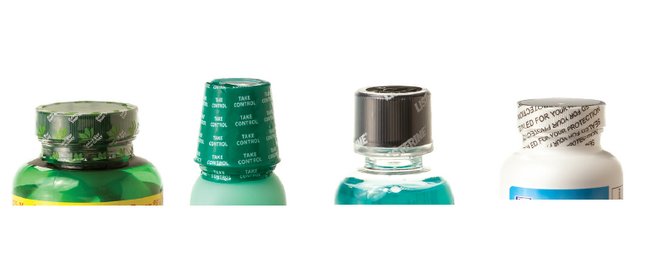

Make your products stand out among the competition with AFM Shrink Sleeves and Tamper Evident Banding
Optional Features And Components Optional Features And Component
Label tamp down deviceTiming screw or wheel
Simple Design Low Maintenance Simple Design Low Maintenance

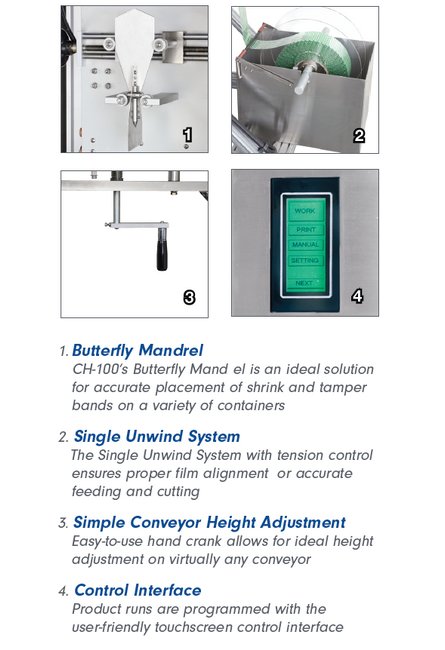

Our machines feature a single unwind system with tension control for proper film alignment, and our photo eye sensor system allows for register cutting, guaranteeing accurate cutting of the film or consistent band application on the container. The CH-100 also comes with our quick change system for switching mandrels with a turn of a knob. Along with the mandrel, the cutter assembly has only two levers to turn, keeping your downtime to a minimum.
Standard Components Standard Components
Stepper motor drivenbutterfly mandrelPneumatic cutting bladePhoto eye for registered cuttingSingle unwind system and tension control
Technical Specs Cut Length
20 to 50 mm
Technical Specs Film Lay Flat
40 to 150 mm
Technical Specs Film Thickness
0.05 to 0.07 mm
Technical Specs Machine Height
1620 to 2000 mm | 63.8 to 78.76 in
Technical Specs Machine Length
1130 mm | 44.5 in
Technical Specs Machine Width
1000 mm | 39.4 in
Technical Specs Phase
1
Technical Specs Speed
20 to 120 cpm
Technical Specs Voltage
220 V
The Right Choice The Right Choice
Rugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
