AFM GS Series Radiant Heat Tunnel
AFM GS Series Radiant Heat Tunnel
SKU:GSS-0678e4
The AFM GS Series Radiant Heat Tunnel - precise shrink labeling for various industries with dual heat settings & compact design.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
AFM GS Series Radiant Heat Tunnel
$4,999.99
Quantity: 1
Claim Your Seller Account
AFM GS Series Radiant Heat Tunnel
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

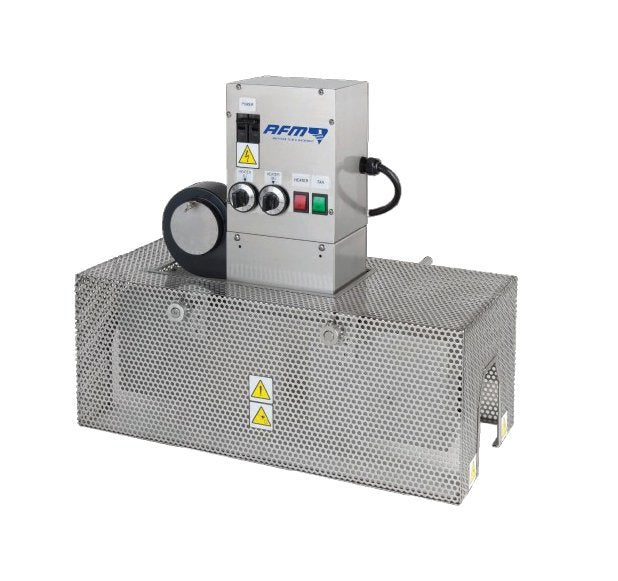

The AFM GS Series Radiant Heat Tunnel is a precision tool specifically designed for shrink sleeve label and tamper-evident band applications in various industries. This series includes the GS-75 and GS-100 models, featuring an opening width of 3.9 inches. With a maximum temperature of 482°F, dual heat bank settings, and infrared heating elements, these tunnels ensure precise band shrinking and high-quality finishes on PVC, PETG, OPS, and PLA films. The compact and versatile design allows for easy integration into existing packaging operations, saving time and money while enhancing efficiency.
Product Specifications
Designed To Perform Designed To Perform
The GS-75 utilizes a 75 mm x 100 mm opening to accommodate a number of neck and TE band applications, while the GS-100 has a slightly larger container opening of 100mm x 150mm. Both machines have a maximum temperature of 482ºF and feature high quality infrared heating elements and a powerful blower for uniform heat distribution.
Ease Of Operation Ease Of Operation

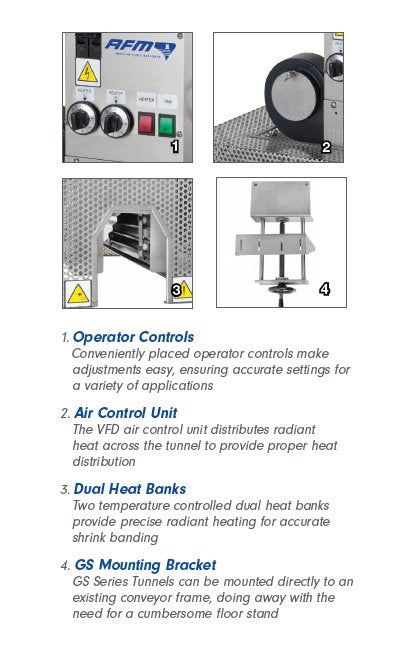

GS Series Tunnels are designed to be compact and easy-to-operate additions to your existing shrink band applications. The GS-75 and GS-100 utilize two temperature control regulators for accurate dual heat bank settings and precise band shrinking. Tunnel temperatures are monitored by an external settings control to ensure proper heat distribution across the tunnel chamber, ensuring a high quality finish on a variety of films including PVC, PETG, OPS, and PLA regardless of container shape.
Engineered For Versatility Engineered For Versatility
Designed to work as an integral part of your day-to-day packaging operations, the GS Series Tunnels feature a modular design and can be easily mounted to an existing conveyor frame, doing away with the need for a cumbersome floor stand. Each system is design with rugged stainless steel, and the compact 23" chamber eliminates the need for lengthy conveyor space. Installation can be completed in minutes using standard tools to have you up and running, saving your company money and increasing your ROI.
Note Note

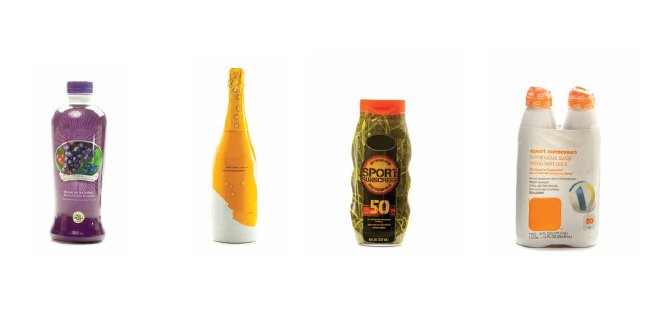

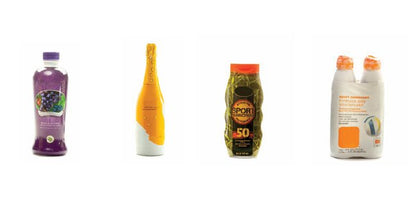

Make your products stand out among the competition with AFM Shrink Sleeves and Tamper Evident Banding
Technical Specs Machine Height
23.6 in | 600 mm
Technical Specs Machine Length
26 in | 660 mm
Technical Specs Machine Width
11.8 in | 300 mm
Technical Specs Maximum Temperature
482 ºF
Technical Specs Opening Height
5.9 in | 150 mm
Technical Specs Opening Length
22.8 in | 580 mm
Technical Specs Opening Width
3.9 in | 100 mm
Technical Specs Power
5.0 kW
Technical Specs Power Supply Alternating Current Ac Voltage
220 V
Technical Specs Power Supply Phase
Single
