AFM LX-150 Shrink Sleeve Labeler with Tamper Evident Banding
AFM LX-150 Shrink Sleeve Labeler with Tamper Evident Banding
SKU:LX1-44203c
Enhance your labeling workflow with precision and reliability using the AFM LX-150 Shrink Sleeve Labeler.
Regular price
$24,999.00
Regular price
Sale price
$24,999.00
Unit price
per
Initiate Order
AFM LX-150 Shrink Sleeve Labeler with Tamper Evident Banding
$24,999.00
Quantity: 1
Claim Your Seller Account
AFM LX-150 Shrink Sleeve Labeler with Tamper Evident Banding
$24,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

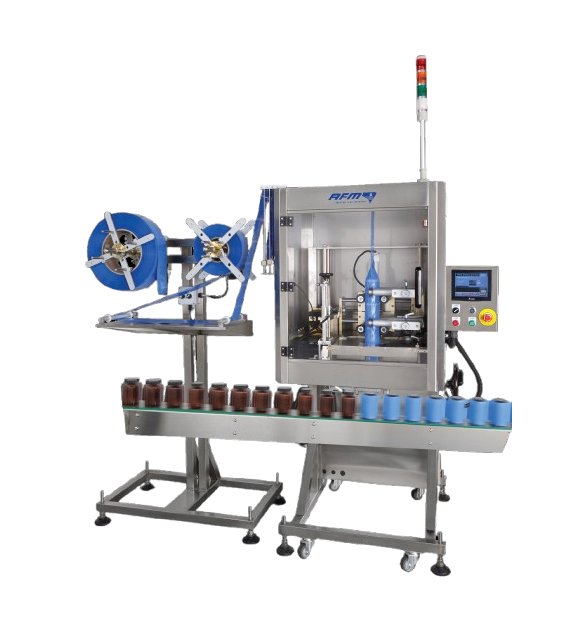

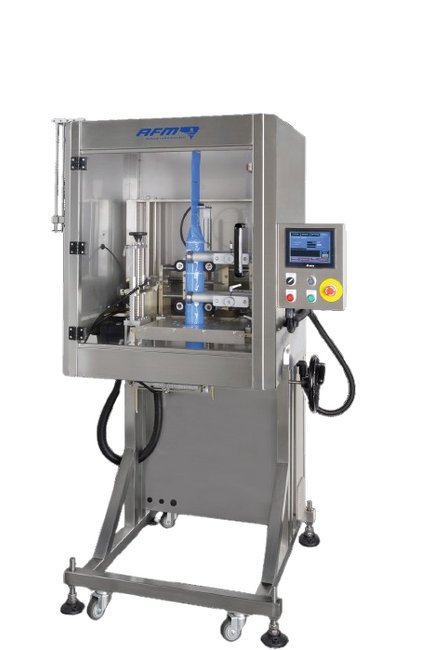

The AFM LX-150 Shrink Sleeve Labeler with Tamper Evident Banding is an ideal mid-range labeling solution designed for various industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, and more. Featuring servo-driven, PLC-controlled components for precise labeling, this machine offers seamless size changeovers, quick cut length adjustments, and the option for additional mandrels to cater to non-cylindrical containers. With a speed of up to 300 cpm, stainless steel construction, and quiet operation, the LX-150 ensures efficiency, reliability, and versatility to meet the evolving needs of contract packagers.
Product Specifications
Guaranteed Precision Quick Changeover Guaranteed Precision Quick

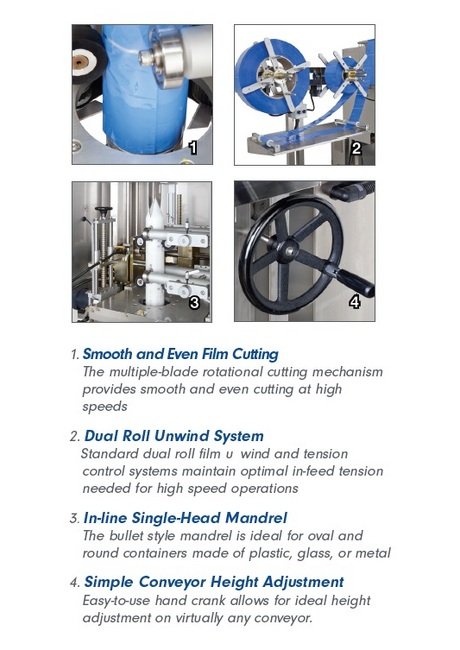

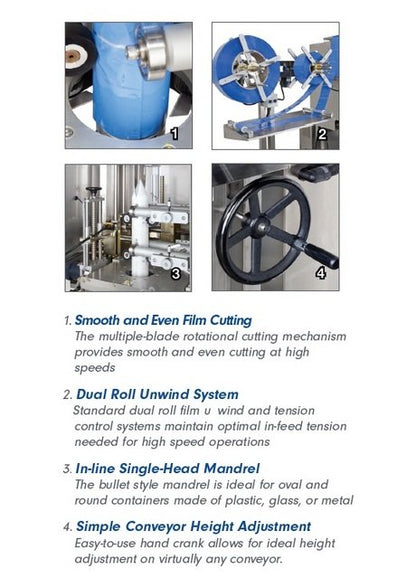

Size change overs are simple and quick. The cut length can be changed electronically by utilizing the control panelsâ touch screen interface. For different product diameters, a new timing screw and bullet (mandrel) can be installed in minutes, while different product heights are accommodated by raising or lowering the machine with a turn-screw mechanism. The LX-150 comes with our quick change system for switching mandrels with a turn of a knob. Along with the mandrel, the cutter assembly has only two levers to turn, keeping your downtime to a minimum.
Increase Your Workflow Increase Your Workflow
LX-150 is an in-line single-head mandrel style labeling system engineered to meet the demand of your workflow. The LX-150 can be rolled up to any conveyor to provide accurate shrink sleeve placement up to 300 products per minute. The machineâs sturdy design and construction provides for 24 hour operation, while itsâ standard dual unwind system allows continued operation with only a brief splicing stop. Product runs are programmed with the user-friendly touch-screen control panel HMI, featuring standard and custom menus that can be password protected for an added layer of security.
Note Note
Make your products stand out among the competition with AFM Shrink Sleeves and Tamper Evident Banding.
Optional Features And Components Optional Features And Component
Mandrel for non-cylindrical containersCradle belt label stopperVertical and T perforation unitsLabel tamp down deviceDate code / lot code printerDual timing screw assemblyMotorized height adjustmentSiemens PLC and servo motor optionPanasonic servo motor optionXL models available
Standard Components Standard Components
Round cylindrical mandrelCutter assemblySingle timing screw unitPhoto eye for registered cuttingLabel brush down deviceDual roll unwind system and tension controlThermal transfer overprinter
Technical Specs Cut Length
30 to 200 mm
Technical Specs Film Lay Flat
40 to 240 mm
Technical Specs Film Thickness
0.035 to 0.07 mm
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Machine Height
72.8 to 84.6 in | 1850 to 2150 mm
Technical Specs Machine Length
42.9 in | 1090 mm
Technical Specs Machine Width
33.6 in | 853 mm
Technical Specs Note For Film Lay Flat And Cut Length
XL models available to accommodate wider film lay flat and longer cut lengths. Please inquire about the XL models from your Authorized Distributor or AFM Representative.
Technical Specs Phase
3
Technical Specs Speed
50 to 300 cpm
Technical Specs Voltage
220 V | 380 V | 400 V | 440 V
The Right Choice The Right Choice
Rugged design. Maximum uptime. Lower cost of ownership. Your benefits go on and on. When it comes to shrink sleeve and tamper band application, rely on American Film & Machinery to provide the right solution for your shrink sleeve labeling needs.
Versatility And Reliability Versatility And Reliability
Every LX Series machine is designed with servo driven, PLC controlled label drive rollers, cutter assembly, and label shooting wheels to provide accurate and consistent shrink sleeve labeling. LX-150 is constructed using 304 grade stainless steel to provide strength and reduce vibration while offering quiet operation. LX-150 has been engineered to handle oval and round containers made of plastic, glass, or metal at speeds of up to 300cpm. Users also have the option of purchasing additional mandrels for non-cylindrical containers. The multiple blade rotational cutting mechanism provides extremely smooth, even cutting of film ranging from 35 microns up to 70 microns.
