Air Operated Diaphragm Chuck - MBS/L Model
Air Operated Diaphragm Chuck - MBS/L Model
SKU:DIA-636d47
Enhance precision & efficiency in grinding and turning with the MBS/L Air Operated Diaphragm Chuck. Ideal for high-concentricity workpieces.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Air Operated Diaphragm Chuck - MBS/L Model
$899.99
Quantity: 1
Claim Your Seller Account
Air Operated Diaphragm Chuck - MBS/L Model
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MBS/L Air Operated Diaphragm Chuck features a self-contained design with a built-in air cylinder for efficient chuck operation. Designed for OD and ID chucking in cylindrical grinding, turning, and hard turning applications, this chuck is ideal for workpieces requiring high concentricity and close roundness. With a Chuck Size of 4.02 inches and Max. rpm of 7,000, this chuck delivers precise results with a Repeating Accuracy of .0001 inches. Its Max. Jaw Force of 1,560 lbf ensures secure gripping, making it suitable for fragile parts and high-speed applications.

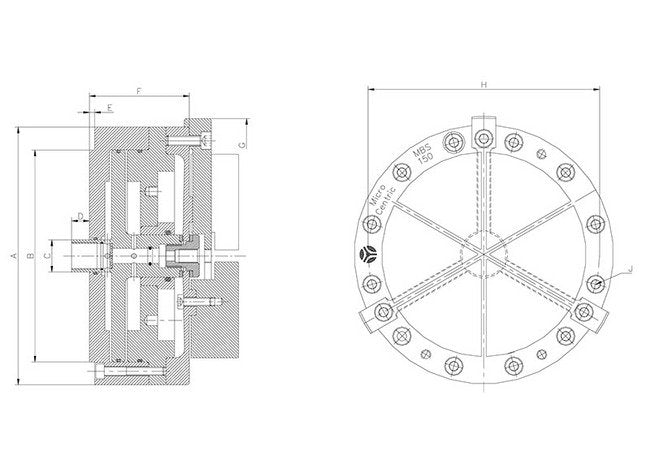

Product Specifications
Specifications A Dimension
4.02 in | 102.1 mm
Specifications B Dimension
3.249 in | 82.5 mm
Specifications Chuck Size
4.02 in | 102 mm
Specifications C Dimension
.750 in | 19 mm
Specifications D Dimension
.50 in | 12.7 mm
Specifications E Dimension
.060 in | 1.5 mm
Specifications F Dimension
2.21 in | 56.1 mm
Specifications G Dimension
4.33 in | 110 mm
Specifications H Dimension
3.500 in | 88.9 mm
Specifications Item No
41 100 001
Specifications Jaw Stroke
.060 in | 1.5 mm
Specifications J Dimension
M5
Specifications Max Air Pressure
100 psi | 7.1 kg/cm²
Specifications Max Jaw Force
1,560 lbf | 709 kgf
Specifications Max Rpm
7,000
Specifications No Of Jaws
6
Specifications Ordering Information
MMR Diaphragms, AAS Part Stop Spiders and SMR Blank Top Jaws are not included Diaphram Chucks but are standard equipment.
Specifications Repeating Accuracy
.0001 in | .0025 mm
Specifications Weight
6.5 lb | 3.0 kg
Standard Equipment Available Standard Equipment
ASS-100, AAS Part Stop Spider | MMR-100-6, MMR Diaphragms | SMR-100-25S, SMR Blank Top Jaws | SMR-100-38S, SMR Blank Top Jaws | SMR-100-50S, SMR Blank Top Jaws
