Aircraft Aluminum Rod Ends - 6061-T6 Aluminum, 52100 Bearing Steel

Name: Aircraft Aluminum Rod Ends - 6061-T6 Aluminum, 52100 Bearing Steel
Brand: OneMonroe (Monroe Engineering Products)
SKU: ROD-893329
Price: 29.99 USD
Availability: OutOfStock

SKU:ROD-893329

Durable Aircraft Aluminum Rod Ends with 6061-T6 Aluminum body and 52100 Bearing Steel balls for reliable performance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your automotive and industrial projects with our Aircraft Aluminum Rod Ends. Made from high-quality 6061-T6 Aluminum with 52100 Bearing Steel balls, these rod ends offer durability and precision. Featuring a Hard Chrome Plated finish, Male/Female and Left/Right variants, UNF 3A thread type, and meeting rigorous industry standards, these rod ends ensure reliability in diverse applications.

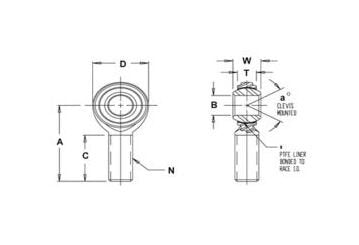

Product Specifications

Specifications Approx Weight

0.091 lbs

Specifications A Length 0015 0015

2.125 in

Specifications A Mis Angle Ref

Specifications Ball

0.812 in

Specifications Ball Material

52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated

Specifications Body Material

6061-T6 Aluminum, Color Anodized Red And Black

Specifications B Dia 00025 00005

0.4375 in

Specifications C Length 0062 0031

1.375 in

Specifications D Dia 0010 0010

1.125 in

Specifications Liner Material

Teflon Liner Available

Specifications N Thread Unf 3a

7/16-20

Specifications Race Material

Aluminum

Specifications Rod End Variants

REA-7

Specifications Static Radial Load

4,534 lbs

Specifications Thread Type

Right

Specifications Type

Male

Specifications T Width

0.437 in

Specifications Warning

Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Specifications W Width 0005 0005

0.562 in

Aircraft Aluminum Rod Ends - 6061-T6 Aluminum, 52100 Bearing Steel
