Aircraft Aluminum Rod Ends - 6061-T6, Female Variant
Aircraft Aluminum Rod Ends - 6061-T6, Female Variant
SKU:ROD-0eeabd
High-quality Aircraft Aluminum Rod Ends for automotive and industrial applications. Precision-engineered for durability and performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Aircraft Aluminum Rod Ends - 6061-T6, Female Variant
$29.99
Quantity: 1
Claim Your Seller Account
Aircraft Aluminum Rod Ends - 6061-T6, Female Variant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive vehicles and industrial machines with our Aircraft Aluminum Rod Ends featuring 6061-T6 Aluminum body material and 52100 Bearing Steel balls. Heat treated for durability, these rod ends are precision-engineered for high performance and reliability. With UNF 3A threaded ends and various size specifications, these rod ends meet stringent industry standards for quality and strength.

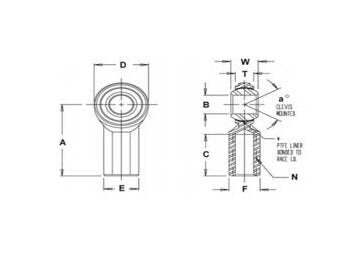

Product Specifications
Specifications Approx Weight
0.088 lbs
Specifications A Length 0015 0015
1.625 in
Specifications A Mis Angle Ref
12
Specifications Ball
0.719 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.3750 in
Specifications C Length 0062 0031
0.812 in
Specifications D Dia 0010 0010
1.000 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
3/8-24
Specifications Race Material
Aluminum
Specifications Rod End Variants
ALJA-6
Specifications Static Radial Load
3,952 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.406 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.500 in
