Aircraft Aluminum Rod Ends - Female Ball, 6061-T6 Aluminum Body
Aircraft Aluminum Rod Ends - Female Ball, 6061-T6 Aluminum Body
SKU:ROD-f29a0f
Enhance automotive and industrial equipment with durable Aircraft Aluminum Rod Ends
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Aircraft Aluminum Rod Ends - Female Ball, 6061-T6 Aluminum Body
$24.99
Quantity: 1
Claim Your Seller Account
Aircraft Aluminum Rod Ends - Female Ball, 6061-T6 Aluminum Body
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive vehicles and industrial machines with our Aircraft Aluminum Rod Ends. Made from high-quality materials like 6061-T6 Aluminum and 52100 Bearing Steel, Heat Treated HRC58-64 Hard Chrome Plated, these rod ends are durable and reliable. Available in Male/Female and Left/Right variants, these rod ends offer versatility in various industries. With precise specifications like Thread Type: Right, Static Radial Load: 7,006 lbs, and Teflon Liner Available, our rod ends meet stringent industry standards for performance and safety.

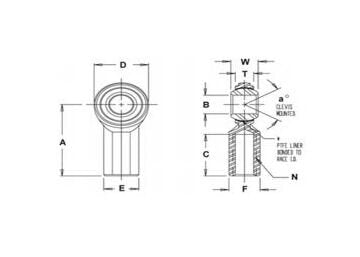

Product Specifications
Specifications Approx Weight
0.186 lbs
Specifications A Length 0015 0015
2.125 in
Specifications A Mis Angle Ref
12
Specifications Ball
0.937 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.062 in
Specifications D Dia 0010 0010
1.312 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
1/2-20
Specifications Race Material
Aluminum
Specifications Rod End Variants
ALJA-8
Specifications Static Radial Load
7,006 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.500 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.625 in
