Aircraft Aluminum Rod Ends - Female Thread, Left Variant
Aircraft Aluminum Rod Ends - Female Thread, Left Variant
SKU:ROD-8598f5
Premium Aircraft Aluminum Rod Ends - Female Thread, Left Variant. High-strength materials, precision design, and corrosion resistance for industrial and automotive use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Aircraft Aluminum Rod Ends - Female Thread, Left Variant
$24.99
Quantity: 1
Claim Your Seller Account
Aircraft Aluminum Rod Ends - Female Thread, Left Variant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Elevate your machinery with precision-engineered Aircraft Aluminum Rod Ends. Crafted from 6061-T6 aluminum body material and 52100 Bearing Steel ball material, heat treated for HRC58-64 hardness. Featuring UNF 3A thread, Teflon liner option, and corrosion-resistant anodized finish. These rod ends offer reliable performance, supporting up to 2,890 lbs static radial load. Ideal for automotive, industrial, and aerospace applications, meeting stringent industry standards.

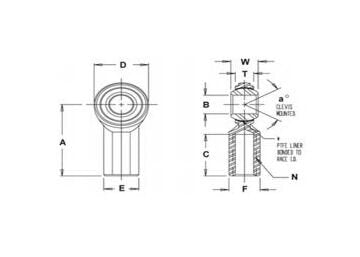

Product Specifications
Specifications Approx Weight
0.050 lbs
Specifications A Length 0015 0015
1.375 in
Specifications A Mis Angle Ref
14
Specifications Ball
0.625 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.3125 in
Specifications C Length 0062 0031
0.687 in
Specifications D Dia 0010 0010
0.875 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
5/16-24
Specifications Race Material
Aluminum
Specifications Rod End Variants
ALA-5
Specifications Static Radial Load
2,890 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
0.344 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.437 in
