Aircraft Aluminum Rod Ends - Female Variant
Aircraft Aluminum Rod Ends - Female Variant
SKU:ROD-7d4f29
Premium Aircraft Aluminum Rod Ends for automotive and industrial use. Strong, versatile, and precision-engineered for optimal performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Aircraft Aluminum Rod Ends - Female Variant
$29.99
Quantity: 1
Claim Your Seller Account
Aircraft Aluminum Rod Ends - Female Variant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Aircraft Aluminum Rod Ends are meticulously crafted with 6061-T6 Aluminum body and 52100 Bearing Steel ball, heat treated for superior strength (HRC58-64). Featuring Red and Black anodized finish, these rod ends are precision engineered for automotive, industrial, and various applications. With UNF 3A 1/4-28 Thread Type, ALJA-4 Rod End Variant, and Teflon Liner option, these rod ends offer exceptional performance and durability, meeting stringent industry standards.
Ready to Grow Without Cash Flow Constraints?

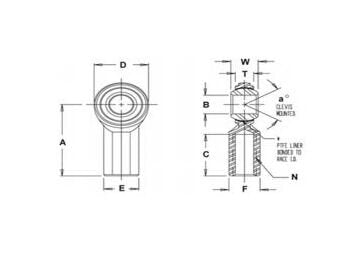

Product Specifications
Specifications Approx Weight
0.034 lbs
Specifications A Length 0015 0015
1.312 in
Specifications A Mis Angle Ref
16
Specifications Ball
0.500 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.2500 in
Specifications C Length 0062 0031
0.687 in
Specifications D Dia 0010 0010
0.750 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
1/4-28
Specifications Race Material
Aluminum
Specifications Rod End Variants
ALJA-4
Specifications Static Radial Load
2,592 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.281 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.375 in
