Aircraft Aluminum Rod Ends - Industrial-Grade Female Thread Rod Ends
Aircraft Aluminum Rod Ends - Industrial-Grade Female Thread Rod Ends
SKU:ROD-b74217
High-performance Aircraft Aluminum Rod Ends for industrial use. Durable 6061-T6 Aluminum with precision-engineered steel ball for reliability and strength.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Aircraft Aluminum Rod Ends - Industrial-Grade Female Thread Rod Ends
$24.99
Quantity: 1
Claim Your Seller Account
Aircraft Aluminum Rod Ends - Industrial-Grade Female Thread Rod Ends
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your machinery with our Aircraft Aluminum Rod Ends designed for industrial applications. Made of high-quality 6061-T6 Aluminum with a 52100 Bearing Steel ball material, heat-treated for durability. These rod ends are precision-engineered for automotive vehicles, industrial machines, and various industries. Available in Male/Female and Left/Right variants to suit your specific needs. Enhance performance and reliability with Monroe's trusted quality.
Ready to Grow Without Cash Flow Constraints?

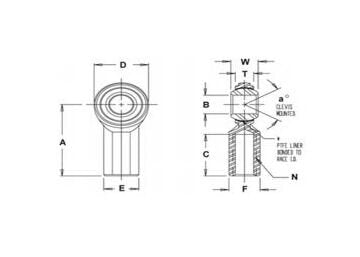

Product Specifications
Specifications Approx Weight
0.022 lbs
Specifications A Length 0015 0015
1.062 in
Specifications A Mis Angle Ref
13
Specifications Ball
0.437 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.1900 in
Specifications C Length 0062 0031
0.500 in
Specifications D Dia 0010 0010
0.625 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
10-32
Specifications Race Material
Aluminum
Specifications Rod End Variants
ALJA-3
Specifications Static Radial Load
1,360 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.250 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.312 in
