Aircraft Aluminum Rod Ends - Male/Female, Left/Right Variants
Aircraft Aluminum Rod Ends - Male/Female, Left/Right Variants
SKU:ROD-0b9686
Upgrade your equipment with durable Aircraft Aluminum Rod Ends for automotive and industrial use. Compliant with industry standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Aircraft Aluminum Rod Ends - Male/Female, Left/Right Variants
$34.99
Quantity: 1
Claim Your Seller Account
Aircraft Aluminum Rod Ends - Male/Female, Left/Right Variants
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your automotive, industrial machines, and various industry applications with our Aircraft Aluminum Rod Ends. These rod ends feature high-quality 6061-T6 Aluminum body material and 52100 Bearing Steel balls heat-treated to HRC58-64 hardness. With precise dimensions and Teflon liner option, our rod ends provide durability, flexibility, and reliable performance. Meet industry standards with UNF 3A threads, 2,850 lbs static radial load capacity, and compliance with Prop 65 regulations for safety.

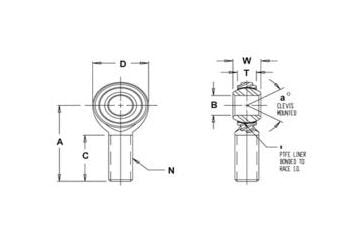

Product Specifications
Specifications Approx Weight
0.050 lbs
Specifications A Length 0015 0015
1.875 in
Specifications A Mis Angle Ref
14
Specifications Ball
0.625 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.3125 in
Specifications C Length 0062 0031
1.250 in
Specifications D Dia 0010 0010
0.875 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
5/16-24
Specifications Race Material
Aluminum
Specifications Rod End Variants
REA-5
Specifications Static Radial Load
2,850 lbs
Specifications Thread Type
Right
Specifications Type
Male
Specifications T Width
0.344 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.437 in
