Aircraft Aluminum Rod Ends - Male/Female Variants
Aircraft Aluminum Rod Ends - Male/Female Variants
SKU:ROD-e2ccd1
Durable Aircraft Aluminum Rod Ends for automotive and industrial applications. Male/Female variants available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Aircraft Aluminum Rod Ends - Male/Female Variants
$29.99
Quantity: 1
Claim Your Seller Account
Aircraft Aluminum Rod Ends - Male/Female Variants
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Aircraft Aluminum Rod Ends are precision-engineered for durability and performance, featuring 6061-T6 Aluminum body material and 52100 Bearing Steel balls heat treated for HRC58-64 hardness. Available in Male and Female variants, these rod ends are designed for automotive vehicles, industrial machines, and various industries. With precise dimensions and load capacities, our rod ends ensure reliable connectivity and longevity in critical applications.

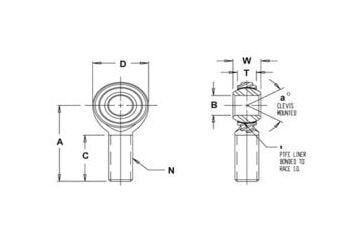

Product Specifications
Specifications Approx Weight
0.034 lbs
Specifications A Length 0015 0015
1.562 in
Specifications A Mis Angle Ref
16
Specifications Ball
0.500 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.2500 in
Specifications C Length 0062 0031
1.000 in
Specifications D Dia 0010 0010
0.750 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
1/4-28
Specifications Race Material
Aluminum
Specifications Rod End Variants
REAA-4
Specifications Static Radial Load
2,465 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications T Width
0.281 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.375 in
