Aircraft Aluminum Rod Ends - Male Variant
Aircraft Aluminum Rod Ends - Male Variant
SKU:ROD-45d0c7
Premium Aircraft Aluminum Rod Ends for automotive and industrial use. Precision-engineered for durability and performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Aircraft Aluminum Rod Ends - Male Variant
$24.99
Quantity: 1
Claim Your Seller Account
Aircraft Aluminum Rod Ends - Male Variant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Engineered for precision and durability, our Aircraft Aluminum Rod Ends are crafted from 6061-T6 Aluminum body material and 52100 Bearing Steel balls heat-treated to HRC58-64 hardness. These rod ends feature a 0.3125in diameter, Left thread type, and are commonly used in automotive vehicles, industrial machines, and various industries. With compliance to industry standards, this reliable component ensures optimal performance and longevity in critical applications.

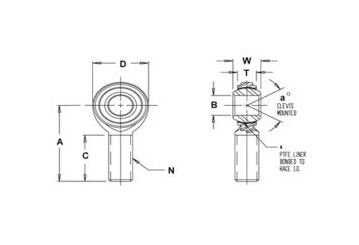

Product Specifications
Specifications Approx Weight
0.050 lbs
Specifications A Length 0015 0015
1.875 in
Specifications A Mis Angle Ref
14
Specifications Ball
0.625 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.3125 in
Specifications C Length 0062 0031
1.250 in
Specifications D Dia 0010 0010
0.875 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
5/16-24
Specifications Race Material
Aluminum
Specifications Rod End Variants
REAA-5
Specifications Static Radial Load
2,850 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications T Width
0.344 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.437 in
