Aircraft Aluminum Rod Ends - Male Variant 3/4-16 UNF 3A Left Thread
Aircraft Aluminum Rod Ends - Male Variant 3/4-16 UNF 3A Left Thread
SKU:ROD-957df8
Premium Aircraft Aluminum Rod Ends with 6061-T6 Aluminum body, 52100 Bearing Steel ball material, and Teflon liner option. Ideal for automotive and industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Aircraft Aluminum Rod Ends - Male Variant 3/4-16 UNF 3A Left Thread
$29.99
Quantity: 1
Claim Your Seller Account
Aircraft Aluminum Rod Ends - Male Variant 3/4-16 UNF 3A Left Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial machinery with our Aircraft Aluminum Rod Ends - precision-engineered with 6061-T6 Aluminum body and 52100 Bearing Steel ball material. Heat treated to HRC58-64 with hard chrome plating for durability. This Male variant features precise dimensions and a Teflon liner option. Perfect for automotive, industrial applications, and more.

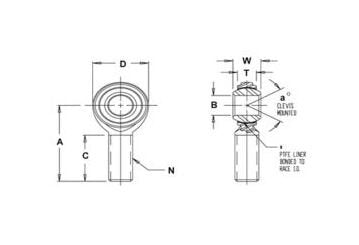

Product Specifications
Specifications Approx Weight
0.317 lbs
Specifications A Length 0015 0015
2.875 in
Specifications A Mis Angle Ref
13
Specifications Ball
1.125 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.6250 in
Specifications C Length 0062 0031
1.750 in
Specifications D Dia 0010 0010
1.750 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
3/4-16
Specifications Race Material
Aluminum
Specifications Rod End Variants
REAA-1012T
Specifications Static Radial Load
19,240 lbs
Specifications Thread Type
Left
Specifications Type
Male
Specifications T Width
0.562 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.750 in
