Aircraft Aluminum Rod Ends: Precision Engineered Female Rod End with 52100 Bearing Steel Ball
Aircraft Aluminum Rod Ends: Precision Engineered Female Rod End with 52100 Bearing Steel Ball
SKU:ROD-dae732
Upgrade automotive and industrial equipment with our precision Aircraft Aluminum Rod End featuring 52100 Bearing Steel Ball.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Aircraft Aluminum Rod Ends: Precision Engineered Female Rod End with 52100 Bearing Steel Ball
$24.99
Quantity: 1
Claim Your Seller Account
Aircraft Aluminum Rod Ends: Precision Engineered Female Rod End with 52100 Bearing Steel Ball
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your automotive vehicles and industrial machines with our precision-crafted Aircraft Aluminum Rod Ends. Made from 6061-T6 Aluminum body material with a 52100 Bearing Steel ball, heat-treated for durability. This Female Rod End features an anodized color finish, UNF 3A threaded for secure assembly, and offers a 12° Mis. Angle Ref. Trust in our robust design with a static radial load capacity of 7,006 lbs to enhance performance in various applications.

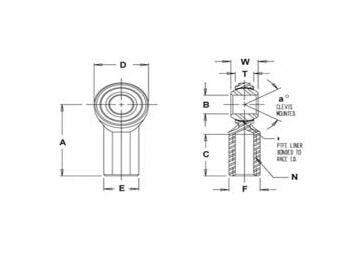

Product Specifications
Specifications Approx Weight
0.186 lbs
Specifications A Length 0015 0015
2.125 in
Specifications A Mis Angle Ref
12
Specifications Ball
0.937 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.5000 in
Specifications C Length 0062 0031
1.062 in
Specifications D Dia 0010 0010
1.312 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
1/2-20
Specifications Race Material
Aluminum
Specifications Rod End Variants
ALA-8
Specifications Static Radial Load
7,006 lbs
Specifications Thread Type
Left
Specifications Type
Female
Specifications T Width
0.500 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.625 in
