Aircraft Grade Aluminum Rod Ends, Female Variant
Aircraft Grade Aluminum Rod Ends, Female Variant
SKU:ROD-468684
Premium Aircraft Aluminum Rod Ends for automotive and industrial applications. Durable, precise, and high-performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Aircraft Grade Aluminum Rod Ends, Female Variant
$24.99
Quantity: 1
Claim Your Seller Account
Aircraft Grade Aluminum Rod Ends, Female Variant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your industrial equipment with our Aircraft Aluminum Rod Ends, crafted from 6061-T6 Aluminum and 52100 Bearing Steel with heat-treated hard chrome plating. These precision components offer exceptional durability and performance in automotive, industrial machines, and various industries. With precise dimensions and high load capacity, optimize your machinery with these reliable rod ends.

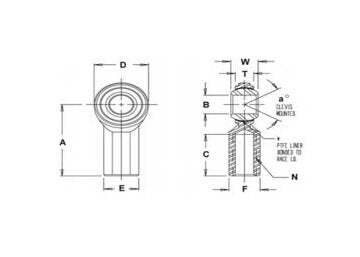

Product Specifications
Specifications Approx Weight
0.050 lbs
Specifications A Length 0015 0015
1.375 in
Specifications A Mis Angle Ref
14
Specifications Ball
0.625 in
Specifications Ball Material
52100 Bearing Steel, Heat Treated Hrc58-64 Hard Chrome Plated
Specifications Body Material
6061-T6 Aluminum, Color Anodized Red And Black
Specifications B Dia 00025 00005
0.3125 in
Specifications C Length 0062 0031
0.687 in
Specifications D Dia 0010 0010
0.875 in
Specifications Liner Material
Teflon Liner Available
Specifications N Thread Unf 3a
5/16-24
Specifications Race Material
Aluminum
Specifications Rod End Variants
ALJA-5
Specifications Static Radial Load
2,890 lbs
Specifications Thread Type
Right
Specifications Type
Female
Specifications T Width
0.344 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications W Width 0005 0005
0.437 in
