The Airflex Pneumatic Quick Release Valve (QRV) is a high-performance three-way valve designed for automatic pressurization closure and rapid exhaust response. With a compact design and durable materials like polyurethane diaphragm and zinc alloy housing, this valve ensures reliability in demanding applications. Operating at a maximum pressure of 150 psi, it offers a wide temperature range from -40 to 120°F. The valve's quick exhaust port minimizes lag time, enhancing operational efficiency and system performance for both consumer and institutional users.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Air Quality 0
Clean and dry to avoid contamination of housing and diaphragm. Any additive used in air supply must be compatible with valve materials.
Quick Release Valve Options 0
Diaphragm & End Cap Kit - DP | Diaphragm, Muffler & End Cap Kit - DQ | with Inlet Pipe Thread - DG | with Inlet Pipe Thread & Muffler - DT | with Metal Sleeve - DE | with Metal Sleeve & 1/4 Pipe Adapter - DM | with Metal Sleeve & Muffler - DS | with Metal Sleeve & Pipe Adapter - DL | with Rubber Sleeve - DF | with Rubber Sleeve & Muffler - DR
Specifications Cylinder Port Thread
1/2-14
Specifications Diaphragm Material
Polyurethane

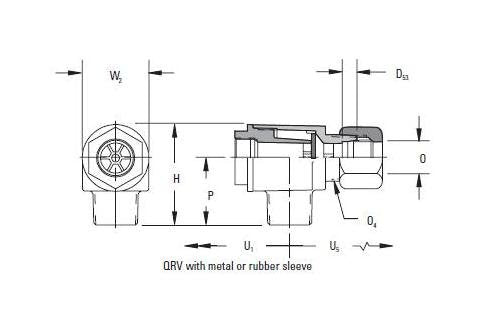

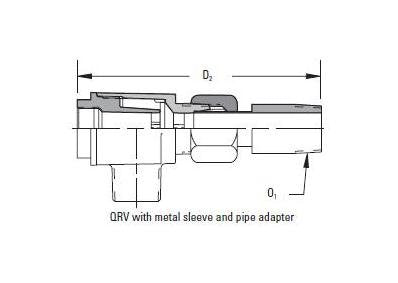

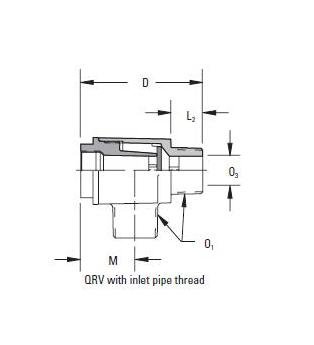

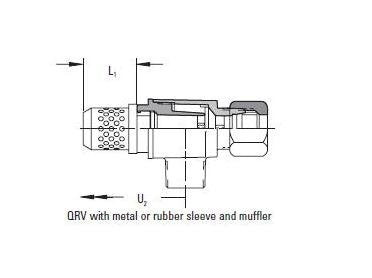

Specifications Dimension D
2.50 in | 64 mm
Specifications Dimension D1
3.92 in | 100 mm
Specifications Dimension D53
0.34 in | 9 mm
Specifications Dimension H
2.18 in | 55 mm
Specifications Dimension L1
1.42 in | 36 mm
Specifications Dimension L2
0.63 in | 16 mm
Specifications Dimension M
1.10 in | 28 mm
Specifications Dimension O
0.625 in | 15.9 mm
Specifications Dimension O1
1/2-14
Specifications Dimension O3
0.56 in | 14 mm
Specifications Dimension O4
7/8-14
Specifications Dimension P
1.44 in | 37 mm
Specifications Dimension U1
1.33 in | 34 mm
Specifications Dimension U2
2.63 in | 67 mm
Specifications Dimension U5
2.15 in | 55 mm
Specifications Dimension W2
1.49 in | 38 mm
Specifications Flow Capacity Cylinder To Exhaust
256 ft³/min | 7.5 m³/min
Specifications Flow Capacity Inlet To Cylinder
172 ft³/min | 4.9 m³/min
Specifications Housing Material
Zinc alloy
Specifications Inlet Port Thread
3/8-18
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Operating Pressure
150 psi | 10.3 bar
Specifications Mean Life
Over five million cycles at 75 psi (5.2 bar) and 80 ºF (27 ºC).
Specifications Minimum Sealing Pressure
2 psi | 0.14 bar
Specifications Muffler Part Numbers
414915
Specifications Operating Temperature Range
-40 to 49 ºC | -40 to 120 ºF
Specifications Size
1/2
Specifications Tubing Outside Diameter
0.625 in
