Airflex Single Passage Rotorseal 3/4 RH
Airflex Single Passage Rotorseal 3/4 RH
SKU:CLU-b0400c
High-quality single passage rotorseal for efficient gas or liquid transfer, designed for clutch and brake control with precise dimensions for performance.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Airflex Single Passage Rotorseal 3/4 RH
$499.99
Quantity: 1
Claim Your Seller Account
Airflex Single Passage Rotorseal 3/4 RH
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Airflex Single Passage Rotorseal is a high-quality rotary union designed for transferring gases or liquids under pressure or vacuum. Ideal for controlling clutches or brakes, this rotorseal ensures efficient passage of compressed air or hydraulic fluid. With a non-metallic sealing ring, ball bearings, and flexible connections, it offers reliable protection against leakage and compensates for wear. This versatile rotorseal, with dimensions designed for precision and performance, provides rigidity and minimal running torque. Plumbable with a quick release valve, this product is engineered for smooth operation and easy maintenance in various applications.
Product Specifications
General Description 0

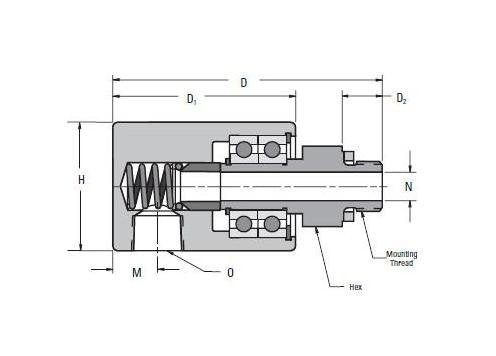

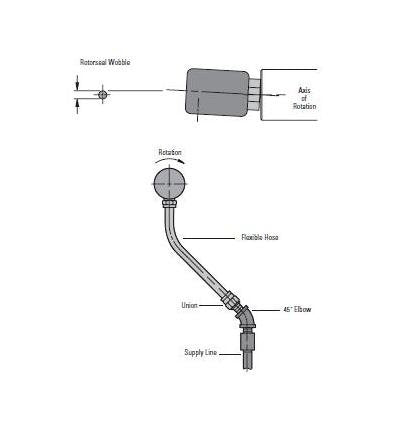

The rotating seal is established by a non-metallic sealing ring, held against the rotorseal shaft by a light spring force. The sealing ring is designed so that media pressure acts on both of its ends to minimize the force on the sealing surface.This design gives positive protection against leakage and compensates for seal wear. Ball bearings are used between the stationary and rotating ports to provide rigidity to the rotorseal assembly and to minimize the running torque.Rotorseals are available with single, dual and triple passages, in a variety of sizes and designs, to provide the versatility needed to handle most requirements. Single passage rotorseals, in pneumatic installation, can be plumbed with a quick release valve at its inlet port to provide a convenient exhaust.In most applications, the rotorseal is mounted to the end of a shaft. The shaft is rifle and cross drilled to provide a passageway for the media transmitted. It is important that the rotorseal's axis of rotation be concentric with the rotating member's axis of rotation to minimize rotorseal wobble.To accommodate eccentricities, a flexible connection must be used between the rotorseal and supply. A rigid connection will tend to preload the rotorseal bearings. The flexible connection should not be installed taut and should include a union and 45º elbow.The flexible connection should be attached to the rotorseal prior to fastening the rotorseal to the rotating body to avoid seal or bearing damage. The union connection to the supply line is made last.

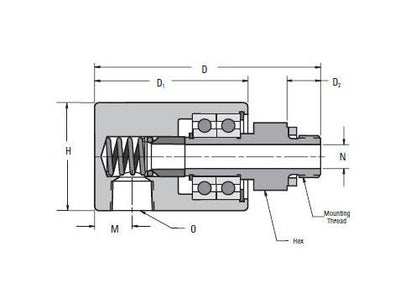

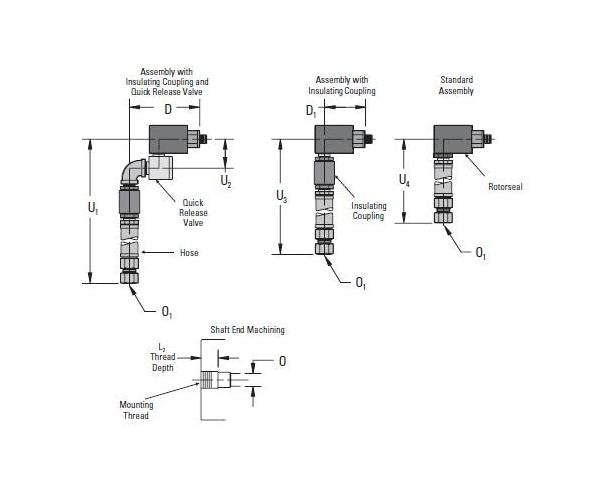

Specifications Assembly With Insulating Coupling
146506BR
Specifications Assembly With Insulating Coupling Qrv
104908AB
Specifications Dimension D
6.85 in | 174 mm
Specifications Dimension D1
4.31 in | 109 mm
Specifications Dimension D2
11.94 in | 303 mm
Specifications Dimension H
3.00 in | 76 mm
Specifications Dimension H2
2.375 in | 60.3 mm
Specifications Dimension J1
1.750 in | 44.5 mm
Specifications Dimension L
5/16-18
Specifications Dimension L2
0.62 in | 16 mm
Specifications Dimension O
0.75 in | 19 mm
Specifications Dimension O1
3/4-14
Specifications Dimension U2
3.75 in | 95 mm
Specifications Dimension U4
18.8 in | 478 mm
Specifications Dimension U5
21.3 in | 541 mm
Specifications Hose Used In All Arrangements
318 x 4
Specifications Insulating Coupling
153 x 264
Specifications Manufacturer
Eaton-Airflex
Specifications Quick Release Valve
146506BR
Specifications Size
3/4 RH
