Airflex Single Passage Rotorseal - Pneumatic Transmission Seal
Airflex Single Passage Rotorseal - Pneumatic Transmission Seal
SKU:CLU-f5c2a1
Precision-engineered pneumatic transmission rotorseal for reliable gas and liquid transfer in industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Airflex Single Passage Rotorseal - Pneumatic Transmission Seal
$249.99
Quantity: 1
Claim Your Seller Account
Airflex Single Passage Rotorseal - Pneumatic Transmission Seal
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Airflex Single Passage Rotorseal is a precision-engineered rotary union designed for the efficient transmission of gases or liquids in pneumatic systems. It features a non-metallic sealing ring that minimizes leakage and compensates for wear. With ball bearings for rigidity and minimal torque, this rotorseal ensures reliable performance. Its versatility allows for compatibility with various applications, including clutch and brake control, lubrication, and cooling systems. Precision-engineered for concentric rotation, this Rotorseal guarantees optimal functionality and durability in industrial settings.
Product Specifications
General Description 0

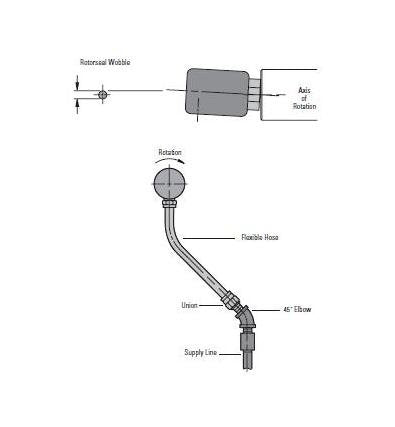

The rotating seal is established by a non-metallic sealing ring, held against the rotorseal shaft by a light spring force. The sealing ring is designed so that media pressure acts on both of its ends to minimize the force on the sealing surface.This design gives positive protection against leakage and compensates for seal wear. Ball bearings are used between the stationary and rotating ports to provide rigidity to the rotorseal assembly and to minimize the running torque.Rotorseals are available with single, dual and triple passages, in a variety of sizes and designs, to provide the versatility needed to handle most requirements. Single passage rotorseals, in pneumatic installation, can be plumbed with a quick release valve at its inlet port to provide a convenient exhaust.In most applications, the rotorseal is mounted to the end of a shaft. The shaft is rifle and cross drilled to provide a passageway for the media transmitted. It is important that the rotorseal's axis of rotation be concentric with the rotating member's axis of rotation to minimize rotorseal wobble.To accommodate eccentricities, a flexible connection must be used between the rotorseal and supply. A rigid connection will tend to preload the rotorseal bearings. The flexible connection should not be installed taut and should include a union and 45º elbow.The flexible connection should be attached to the rotorseal prior to fastening the rotorseal to the rotating body to avoid seal or bearing damage. The union connection to the supply line is made last.

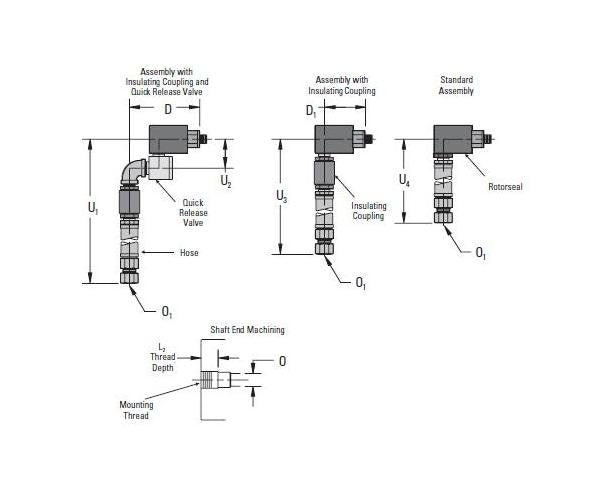

Specifications Assembly With Insulating Coupling
104909AA
Specifications Assembly With Insulating Coupling Qrv
104909AB

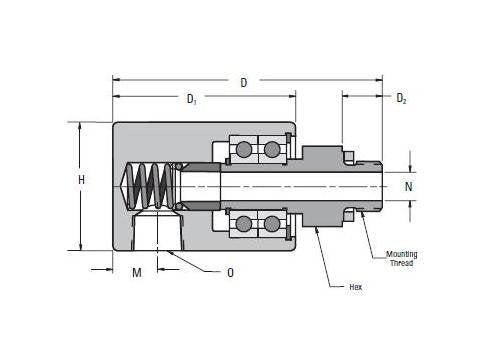

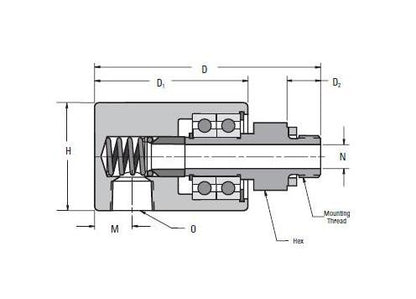

Specifications Dimension D
7.50 in | 191 mm
Specifications Dimension D1
5.00 in | 127 mm
Specifications Dimension D2
12.96 in | 329 mm
Specifications Dimension H
3.25 in | 83 mm
Specifications Dimension H2
2.625 in | 66.7 mm
Specifications Dimension J1
2.000 in | 50.8 mm
Specifications Dimension L
3/8-16
Specifications Dimension L2
0.75 in | 19 mm
Specifications Dimension O
1.00 in | 25 mm
Specifications Dimension O1
1-11 1/2
Specifications Dimension U2
3.75 in | 95 mm
Specifications Dimension U4
19.9 in | 505 mm
Specifications Dimension U5
22.8 in | 579 mm
Specifications Hose Used In All Arrangements
250 x 20
Specifications Insulating Coupling
153 x 267
Specifications Manufacturer
Eaton-Airflex
Specifications Quick Release Valve
146506BR
Specifications Size
1 RH
