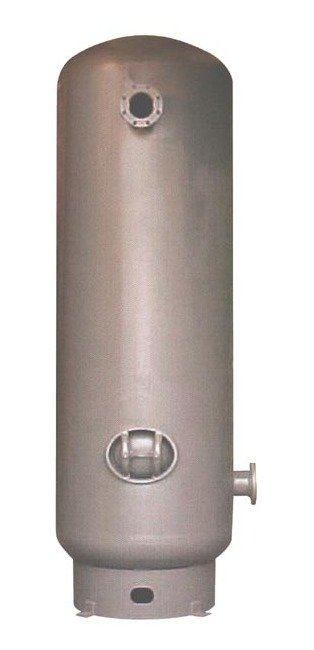

AirMax 2200-Gallon Vertical Air Receiver Tank
AirMax 2200-Gallon Vertical Air Receiver Tank
SKU:REC-941c62
The AirMax 2200-Gallon Vertical Air Receiver Tank: Premium quality, 200 psi MWP, ideal for industrial air compression.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
AirMax 2200-Gallon Vertical Air Receiver Tank
$2,899.99
Quantity: 1
Claim Your Seller Account
AirMax 2200-Gallon Vertical Air Receiver Tank
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AirMax 2200-Gallon Vertical Air Receiver Tank is a high-capacity solution designed for industrial air compression needs. With a Maximum Working Pressure (MWP) of 200 psi, this tank offers exceptional durability and reliability. Its 2200-gallon nominal capacity ensures ample air storage, supported by precise dimensions for easy installation. Crafted with quality materials, the tank features NPT openings for efficient air intake and outlet. Ideal for applications requiring consistent air supply and optimal pressure management.
Product Specifications
Financing Approve Payments
Finance with Approve Payments

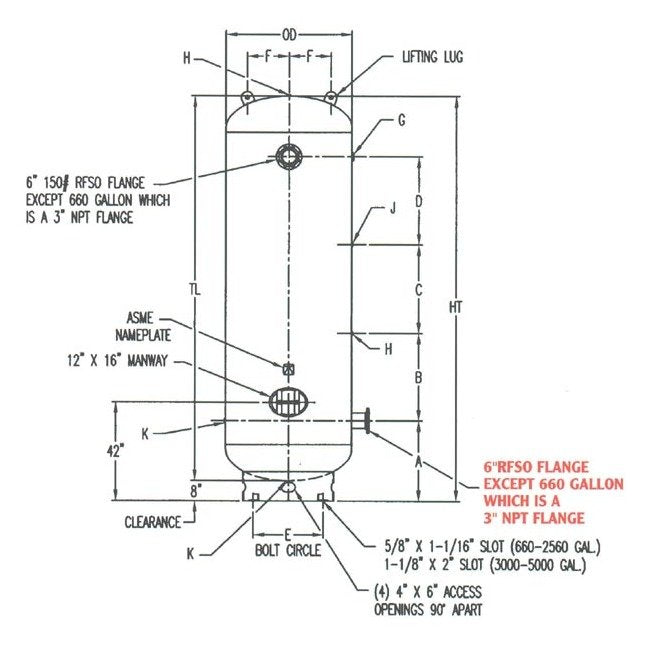

Specifications Dimension A
34.00 inches
Specifications Dimension B
42.00 inches
Specifications Dimension C
48.00 inches
Specifications Dimension D
48.00 inches
Specifications Dimension E
48.50 inches
Specifications Dimension F
20.00 inches
Specifications Ht
198.00 inches
Specifications Mawp
200 psi
Specifications Nominal Capacity
2200 gal | 294.12 ft³
Specifications Npt Opening G
3 inches
Specifications Npt Opening H
1 inches
Specifications Npt Opening J
1/4 inches
Specifications Npt Opening K
1 1/4 inches
Specifications Od
60.00 inches
Specifications Tl
190.00 inches
Specifications Tw
4100
