AirTech® 3AL2241 Oil-Free Vacuum Pump
AirTech® 3AL2241 Oil-Free Vacuum Pump
SKU:VAC-5ec7c1
Environmentally friendly, maintenance-free AirTech® 3AL2241 Oil-Free Vacuum Pump with food-grade configuration and compact design.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
AirTech® 3AL2241 Oil-Free Vacuum Pump
$3,499.99
Quantity: 1
Claim Your Seller Account
AirTech® 3AL2241 Oil-Free Vacuum Pump
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AirTech® 3AL2241 Vacuum Pump from the 3AL Series is a top choice for institutions and consumers alike. With an environmentally friendly oil-free design, this self-contained and maintenance-free pump ensures durability with its all-steel shell and stainless reservoir. It's food-grade configuration and compact, quiet operation make it ideal for various applications. Offering a maximum vacuum of 28.5 Hg and available in all stainless-steel units, the 3AL2241 delivers reliable performance and easy installation.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Note 0
All Stainless Steel units also available.
Performance Electrical Frequency
60 Hz
Performance Maximum Current
8.6 A | 18 A
Performance Rated Power
5 hp
Performance Sound Level
74 dB(A)
Performance Speed
1750 rpm
Performance Voltage Range
208-230 V | 460 V
Performance Weight
360 lb
Specifications Air Discharge I Fnpt
2.0 in
Specifications Air Inlet H Mnpt
2.0 in

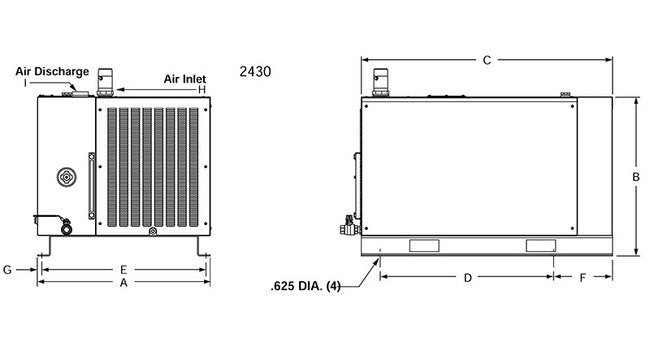

Specifications Dimension A
29.7 in
Specifications Dimension B
27.2 in
Specifications Dimension C
43.1 in
Specifications Dimension D
29.7 in
Specifications Dimension E
28.2 in
Specifications Dimension F
10.1 in
Specifications Dimension G
0.8 in

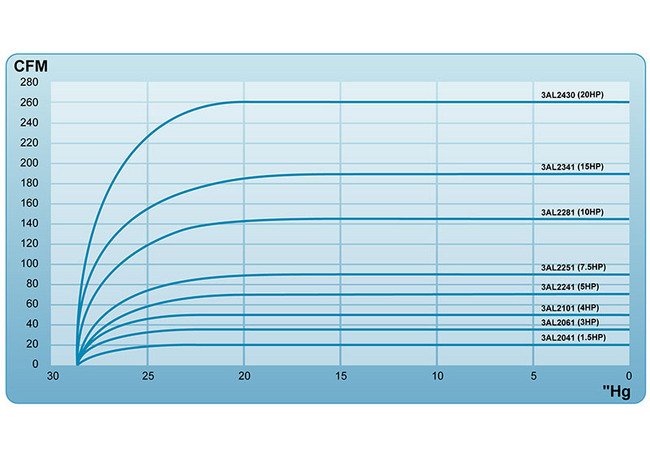

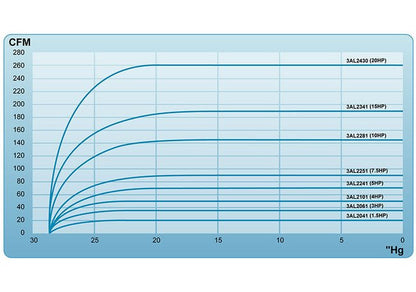

Specifications Flow Rate
72 ft³/min
