AirTech 3AL2061 Oil-Free Vacuum Pump
AirTech 3AL2061 Oil-Free Vacuum Pump
SKU:VAC-c202cf
AirTech 3AL2061 Vacuum Pump - Oil-Free, Self-Contained, Maintenance-Free, 304 Stainless Steel components, Compact & Quiet
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
AirTech 3AL2061 Oil-Free Vacuum Pump
$2,899.99
Quantity: 1
Claim Your Seller Account
AirTech 3AL2061 Oil-Free Vacuum Pump
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

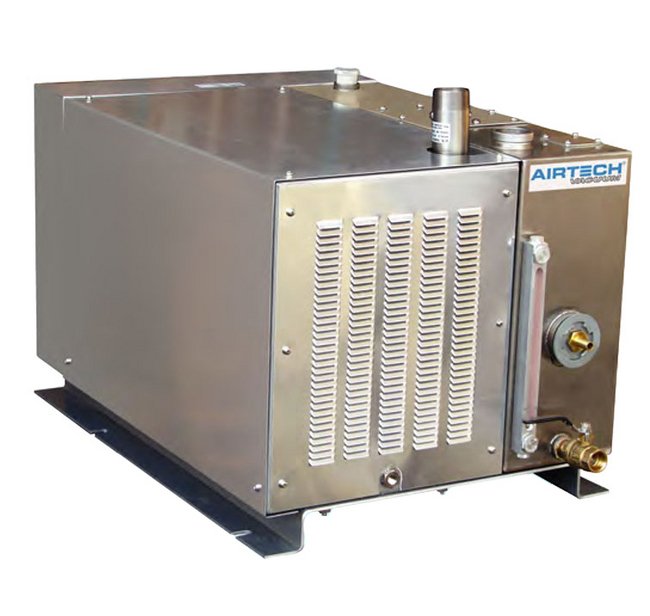

The AirTech 3AL2061 Vacuum Pump is a premium solution designed for efficiency and durability. With an environmentally friendly oil-free design and a self-contained, maintenance-free operation, this pump ensures reliable performance. It features a robust all-steel shell with a stainless reservoir for enhanced durability. Suitable for institutional use, it offers a food-grade configuration with all external components in 304 Stainless Steel. Operating quietly and compactly, with a maximum vacuum of 28.5 Hg, this pump is easy to install and delivers outstanding performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Note 0
All Stainless Steel units also available.
Performance Electrical Frequency
60 Hz
Performance Maximum Current
4.4 A | 7.6 A
Performance Rated Power
3 hp
Performance Sound Level
70 dB(A)
Performance Speed
3450 rpm
Performance Voltage Range
208-230 V | 460 V
Performance Weight
150 lb

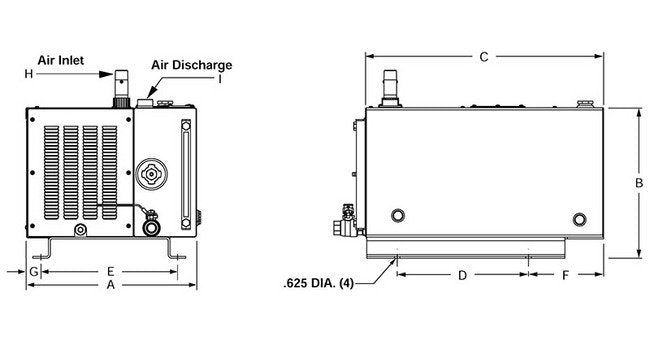

Specifications Air Discharge I Fnpt
1.5 in
Specifications Air Inlet H Mnpt
1.5 in
Specifications Dimension A
21.0 in
Specifications Dimension B
18.8 in
Specifications Dimension C
30.0 in
Specifications Dimension D
17.8 in
Specifications Dimension E
19.5 in
Specifications Dimension F
9.0 in
Specifications Dimension G
0.8 in

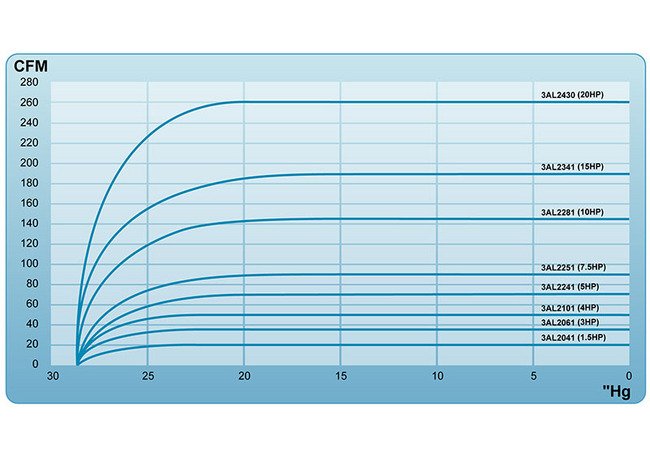

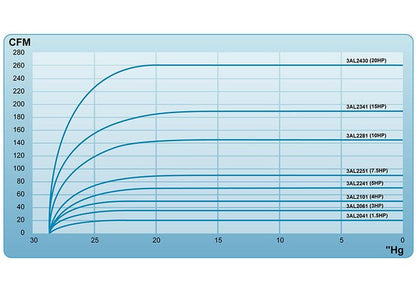

Specifications Flow Rate
33 ft³/min
