AiryTech P611 Handheld Particle Counter
AiryTech P611 Handheld Particle Counter
SKU:P61-e232c7
The AiryTech P611 Handheld Particle Counter: Accurate, reliable, and ISO compliant for cleanroom validation and air quality investigations.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
AiryTech P611 Handheld Particle Counter
$1,899.99
Quantity: 1
Claim Your Seller Account
AiryTech P611 Handheld Particle Counter
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

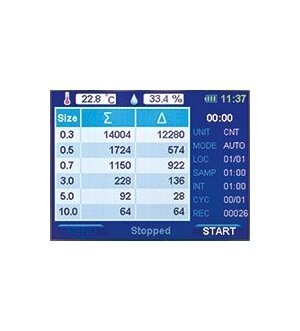

The AiryTech P611 Handheld Particle Counter is a reliable solution for professionals validating ISO cleanrooms (Class 5 - 9) and investigating indoor air quality. With a flow rate of 0.1 CFM, it accurately measures particles from 0.3µm to 10.0µm. This user-friendly device displays 6 size channels and optional temperature/humidity on a 3.5'' color LCD. Compliant with ISO 21501-4, it stores 10,000 sample records, ensuring data accuracy and traceability. The P611 is equipped with security features like 2-level password protection and alarm indicators for counts, flow, laser, and low battery.
Product Specifications
Applications 0
ISO Cleanroom Certification (ISO Class 5-9)Point Measurements at CleanroomsParticle Source InvestigationFilter Testing and Leak DetectionIndoor Air Quality InvestigationsQuality Control
Options Options

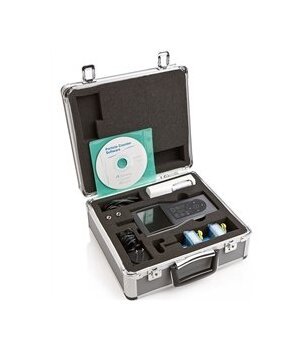

Temperature/Humidity ProbeHandheld Carrying CaseIsoprobe Threaded 0.1 CFM Stainless Steel1/4" Inlet Barbed Fitting Stainless SteelPurge Filter Assembly 0.1 CFM (2.83 LPM)Battery Charger with (4) AA BatteriesPower Supply 5V,DC ~1 A,DC input: 100-240VACP611 User Manual and Data Download Software (USB)P611 Calibration CertificateP611 Quick Start Guide
Specifications Alarm Indicators
Counts | Flow | Laser | Low Battery
Specifications Calibration
National Institute of Standards and Technology (NIST) Traceable
Specifications Channel Range
0.3 to 10.0 µm
Specifications Channel Sizes
Optional: Other combinations (Please contact Us) | Standard: 0.3, 0.5, 0.7, 1.0, 2.0, 5.0 µm | Standard: 0.3, 0.5, 0.7, 1.0, 2.5, 5.0 µm | Standard: 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm | Standard: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 µm
Specifications Communication Interface
Universal Serial Bus (USB)
Specifications Concentration Limits At 5 Percent Coincidence Los
4,000,000 Particles / ft³
Specifications Counting Efficiency
50% at 0.3 µm; 100% for particles > 0.45 µm (per JIS)
Specifications Data Storage
10000 Sample Records
Specifications Display
3.5 Inch | 320 x 240 | Color Liquid Crystal Display (LCD)
Specifications Flow Rate
0.1 ft³/min | 2.83 L/min
Specifications Flow Rate Control
Automatic Flow Control
Specifications Light Source
Long Life Laser Diode
Specifications Sample Output
Internal HEPA Filter
Specifications Sample Probetubing
Isokinetic Sampling Probe, Probe for Tubing
Specifications Sampling Frequency
1 to 9999 cycles or continuous (Configurable)
Specifications Sampling Modes
Manual,/Automatic/, ISO 1/, GMP2/, Cumulative/Differential/, Count/Concentration1 ISO 5-9 at 0.3-5.0 µm excluding ISO 5 at 5.0 µm/, 2 GMP A-C in operation/, A-D at rest
Specifications Sampling Time
1 second to 99 minutes 59 seconds (Configurable)
Specifications Security
2-Level Password Protection
Specifications Size Resolution At 05 Micrometer M Channel Size
<15 %
Specifications Vacuum Source
Internal Pump
Specifications Zero Count Level Per 5 Minutes
<1
Standard Features Standard Features
6-Channel Simultaneous MeasurementsOptional Temperature & Humidity ProbeLarge Color DisplayMaximum Concentration: 4,000,000 particles /ft³Data Download Software IncludedBuffer Memory: 10,000 RecordsISO 21501-4 and JIS B9921 CompliantData Report: ISO 14644-1 and EU GMP
