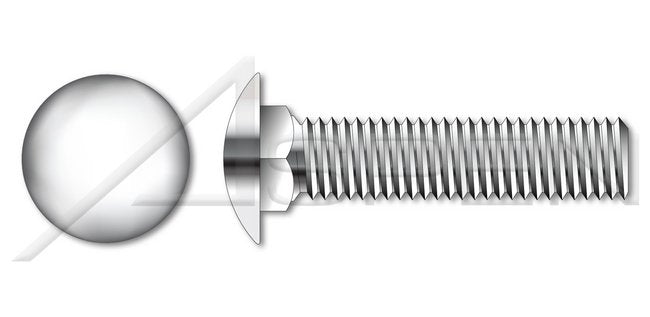

AISI 304 Stainless Steel (18-8) Round Head Square Neck Full Thread Carriage Bolt

Name: AISI 304 Stainless Steel (18-8) Round Head Square Neck Full Thread Carriage Bolt
Brand: Aspen Fasteners
SKU: BOL-5a2815
Price: 49.99 USD
Availability: OutOfStock

SKU:BOL-5a2815

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Carriage Bolts are designed for wood-to-wood or wood-to-metal applications. These self-anchoring bolts have a special neck, often square, that locks the bolt into place to resist turning when the nut is being tightened.

Product Specifications

Additional Information

Also known as coach bolts, are typically used to fasten metal to wood.The square neck under the head locks the bolt into place.Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.Stainless steel significantly improves resistance to tarnishing or corrosion.Can be used as a security fastener. The smooth head prevents unfastening from the head side.

Specifications Coating

Uncoated

Specifications Head Detail

Square Neck

Specifications Head Style

Round Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.5)

Specifications Material

Stainless Steel

Specifications Material Grade

American Iron and Steel Institute (AISI) 304 Stainless Steel (18-8)

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

AISI 304 Stainless Steel (18-8) Round Head Square Neck Full Thread Carriage Bolt
