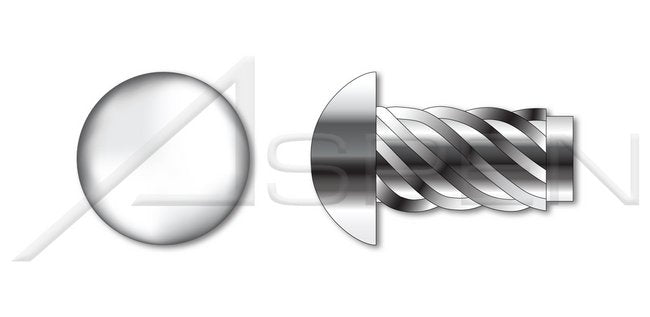

AISI 304 Stainless Steel (18-8) Round Head U-Drive Hammer Screw

Name: AISI 304 Stainless Steel (18-8) Round Head U-Drive Hammer Screw
Brand: Aspen Fasteners
SKU: SCR-a313fb
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-a313fb

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

U-Drive Screws are unslotted self-tapping screws often used for attaching nameplates in castings and for sealing drain holes in corrosion proofing tubular structures. They possess multiple start threads with large helical angles and an unthreaded pilot point. Similar to nails, they are driven into mating parts with a mallet or hammer for a quick and permanent assembly. No tapped threads are required in the mating part. However, the U-Drive Screw must be of harder material than the mating part and a undersized pre-drilled pilot hole is required. U-Drive Screws are also known as Hammer Drive Screws.

Product Specifications

Additional Information

U-drive screws, also known as hammer drive screws, are unslotted round head self tapping screws.Similar to nails, U-drives are driven with a hammer or mallet for a quick and permanent assembly.Type 304 stainless steel is defined as a Chromium-Nickel austenitic alloy.Stainless steel significantly improves resistance to tarnishing or corrosion.

Specifications Coating

Uncoated

Specifications Head Style

Round Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.6.4)

Specifications Material

Stainless Steel

Specifications Material Grade

American Iron and Steel Institute (AISI) 304 Stainless Steel (18-8)

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

AISI 304 Stainless Steel (18-8) Round Head U-Drive Hammer Screw
