AISI-316 Stainless Steel Compact Fittings NPT - 2" 90° Connector
AISI-316 Stainless Steel Compact Fittings NPT - 2" 90° Connector
SKU:FIT-9ff2c2
Premium AISI-316 Stainless Steel Compact Fittings NPT with UL LISTED and CSA CERTIFIED compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
AISI-316 Stainless Steel Compact Fittings NPT - 2" 90° Connector
$29.99
Quantity: 1
Claim Your Seller Account
AISI-316 Stainless Steel Compact Fittings NPT - 2" 90° Connector
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

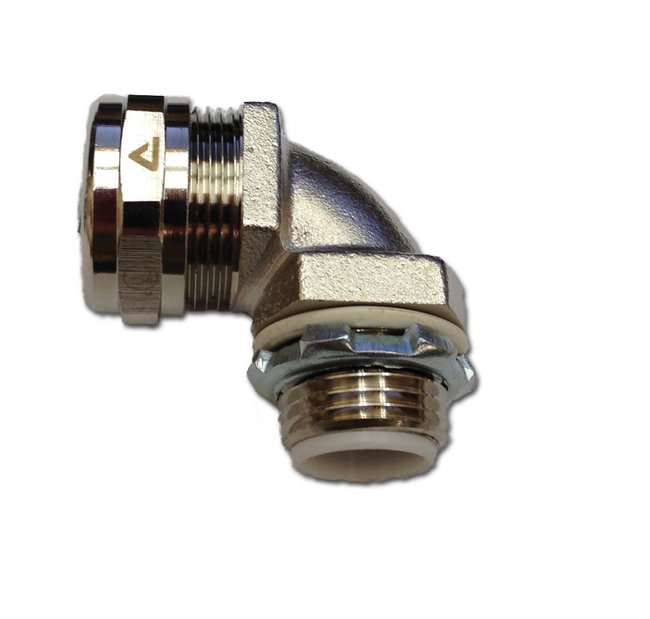

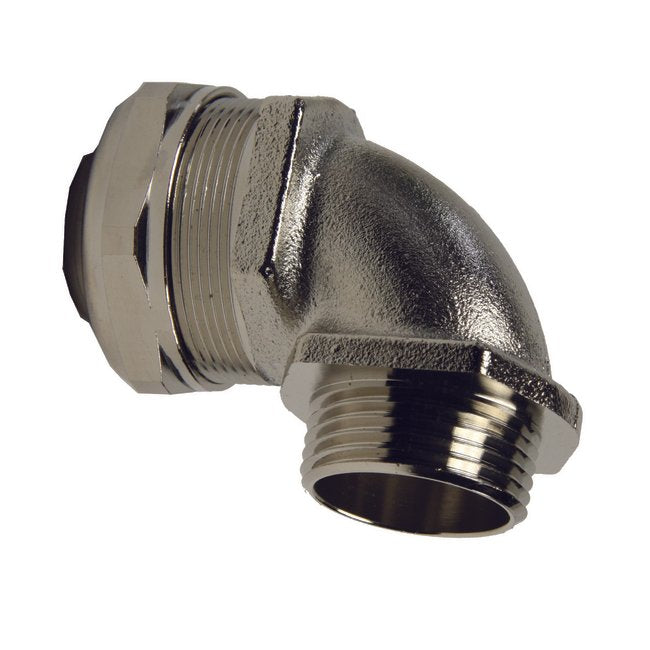

Upgrade your fittings to this high-quality AISI-316 Stainless Steel Compact Fitting NPT. This durable construction features 4 essential parts: counter nut, clamping ring, ferrule, and body, ensuring secure connections. The included sealing ring and stainless steel lock nut provide additional reliability. With UL LISTED, CSA CERTIFIED, and RoHS WEEE COMPLIANT certifications, this fitting meets industry standards for safety and performance.
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Stainless Steel

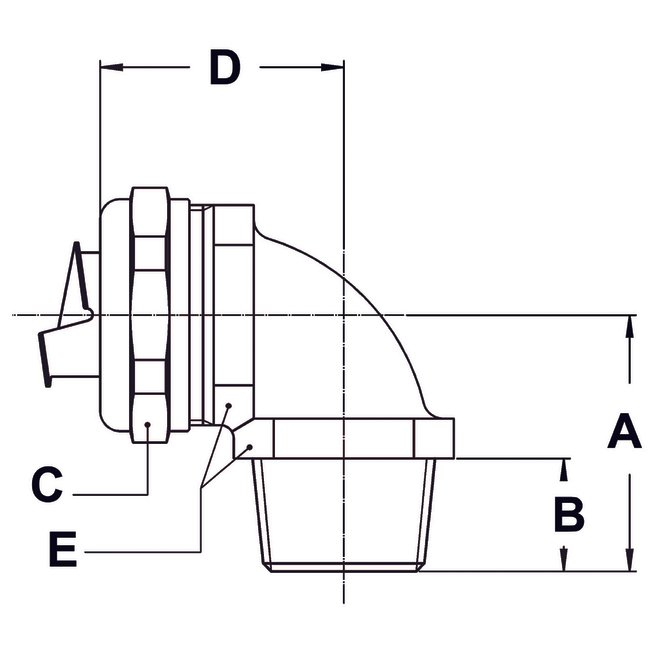

Specifications Dimension A
2.441 in
Specifications Dimension B
0.630 in
Specifications Dimension C
2.992 in
Specifications Dimension D
2.677 in
Specifications Dimension E
2.834 in
Specifications Electrical Trade Size
2 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
2"
Specifications Type
Compact 316 Stainless Steel
