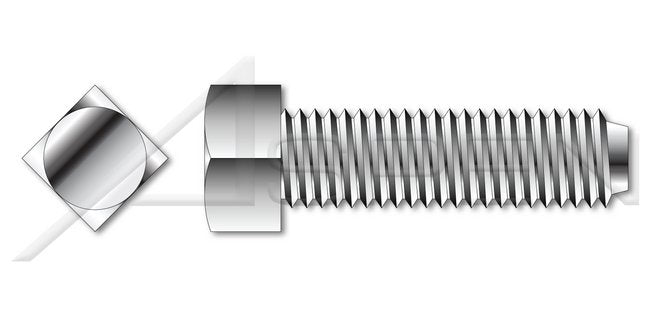

AISI 316 Stainless Steel Square Head Cup Point Full Thread Set Screw

Name: AISI 316 Stainless Steel Square Head Cup Point Full Thread Set Screw
Brand: Aspen Fasteners
SKU: SCR-7140c1
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-7140c1

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Set Screws are also known as Grub Screws or Blind Screws. Set Screws are designed to hold an object in place via friction between the point of the screw and the fastened material. Set screws are designed to be used under compressive stress only. A common use of Set screws would be securing gears or pulleys to a shaft.

Product Specifications

Additional Information

Holds an object in place via friction between the point of the screw and the fastened material.While similar to set screws with a hex recess drive, the square head allows for a wrench to be used.Square head set screws are also known as grub screws.Type 316 stainless steel is considered "marine grade".Stainless steel significantly improves resistance to tarnishing or corrosion.Set screws are designed to be used under compressive stress only.

Specifications Coating

Uncoated

Specifications Drive Style

External Square Drive

Specifications Head Style

Square Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.6.2)

Specifications Material

Stainless Steel

Specifications Material Grade

American Iron and Steel Institute (AISI) 316 Stainless Steel

Specifications Material Processes

Passivated

Specifications Point

Cup Point

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread

Specifications Thread Pitch

Coarse Thread
