AK Rivet Nut #10-32 Thread Size 0.475" L Countersunk Head, Steel
AK Rivet Nut #10-32 Thread Size 0.475" L Countersunk Head, Steel
SKU:KSE-ccc614
K-Series AK Rivet Nut: #10-32 thread, steel construction, easy installation, compliant with Federal/DoD standards.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
AK Rivet Nut #10-32 Thread Size 0.475" L Countersunk Head, Steel
$12.99
Quantity: 1
Claim Your Seller Account
AK Rivet Nut #10-32 Thread Size 0.475" L Countersunk Head, Steel
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

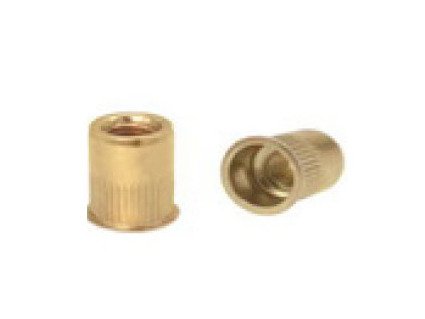

The K-Series AK Rivet Nut features a #10-32 thread size, steel construction with yellow zinc plating, and a 0.475" L countersunk head design. Ideal for industrial applications requiring a secure fastening solution. With a serration style 2 and open end design, it ensures easy installation and a reliable grip range of 0.020" to 0.130". This rivet nut also complies with Federal/DoD procurement standards, making it a trusted choice for institutional buyers.

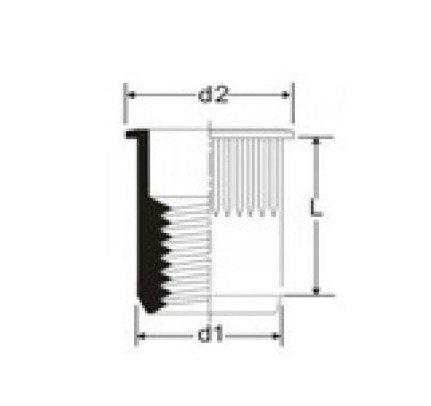

Product Specifications
Dimensions Dimension D1
0.296 in
Dimensions Dimension D2
0.340 in
Dimensions Dimension K
0.019 in
Dimensions Dimension L
0.475 in
Dimensions Hole Size
19/64 in
Dimensions Maximum Grip Range
0.130 in
Dimensions Minimum Grip Range
0.020 in
Note Note
Stainless Steel & Aluminum are available. Serration style is available.
Technical Specs Brands
Ornit
Technical Specs Finish
Yellow Zinc Plated
Technical Specs Head Style
Countersunk Head (AK)
Technical Specs Material
Steel
Technical Specs Rivet Type
Open End
Technical Specs Style
Serration Style 2
Technical Specs Thread Size
#10-32
