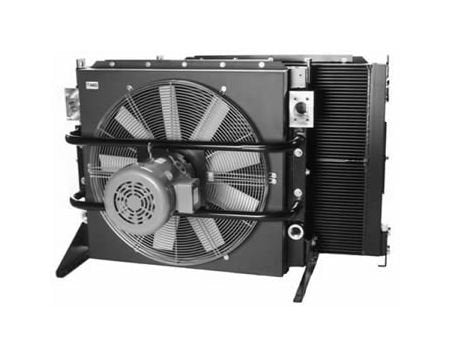

The AKG AOC Series Aftercoolers/Oil Coolers offer a comprehensive cooling solution for rotary air compressors, including aftercooler/oil cooler, fan, motor, guards, and mounting brackets. These packages are ideal for converting water-cooled compressors to air-cooled systems or for remote mounting, reducing noise and improving operating conditions. With a durable construction featuring aluminum coolers, powder-coated steel components, and high-quality fan materials, these units ensure efficient heat dissipation, corrosion resistance, and long-term reliability. The AKG AOC Series is designed to meet the cooling demands of compressors ranging from 300 to 350 horsepower, with a maximum working pressure of 250 psi, making it a versatile and high-performance choice for industrial applications.
Product Specifications
Electric Motor Data Frequency 3
50 Hz | 60 Hz
Electric Motor Data Full Load Current At 230 V 3
25.0 A
Electric Motor Data Motor Frame
NEMA 215TC
Electric Motor Data Power
10 hp
Electric Motor Data Speed
1725 rpm
Electric Motor Data Voltage 3 50 Hz
190 V | 200 V | 208 V | 380 V | 400 V | 416 V
Electric Motor Data Voltage 3 60 Hz
203-230 V | 460 V
Features 0
Complete Package includes aftercooler/oil cooler, fan, motor, guards and mounting brackets.Convert Water cooled compressors to air cooled. Eliminate corrosion and expensive water bills.Remote Mount the cooling package from the compressor to reduce noise, or to a cleaner, cooler, more convenient location.Canadian Registry Numbers Available
Financing Approve Payments
Finance with Approve Payments
Heat Removal 0
Oil Cooler = Compressor Horsepower x 1.15 (motor service factor) x 0.83 (this assumes 83% of input horsepower is rejected to heat)Aftercooler = Compressor Horsepower x 1.15 (motor service factor) x 0.17 (this assumes 17% of input horsepower is rejected to heat)
Note 0
Electric motors are totally enclosed, and are not thermally protected.Actual ratings vary with motor brand. Check motor nameplate for actual ratings.Motor RPM is reduced by 1/6 for 50 Hz service.
Specifications Air Compressor Horsepower
300 to 350 hp
Specifications Alternate
X-AOC350
Specifications Ambient Air Temperature
+100 ºF = Compressor Oil Inlet Temperature. | +15 ºF = Compressor Air Outlet Temperature.
Specifications Cooler Material
Aluminum

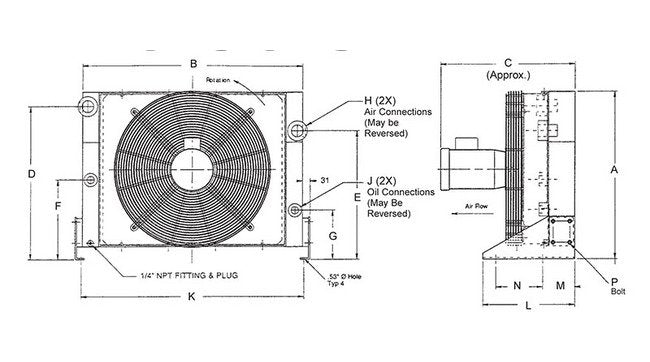

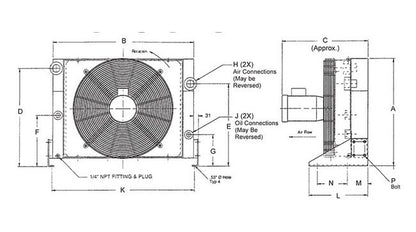

Specifications Dimension A
57.48 in
Specifications Dimension B
52.76 in
Specifications Dimension C
32.48 in
Specifications Dimension D
51.97 in
Specifications Dimension E
43.86 in
Specifications Dimension F
17.72 in
Specifications Dimension G
17.72 in
Specifications Dimension H
3.00 in SAE
Specifications Dimension J
2.50 in SAE
Specifications Dimension K
50.55 in
Specifications Dimension L
20.00 in
Specifications Dimension M
7.80 in
Specifications Dimension N
10.00 in
Specifications Dimension P
3/4-10 1 1/2 BOLT (8PL)
Specifications Fan Blade Material
Aluminum Hub | Polypropylene Blades
Specifications Fan Guard Material
Zinc Plated Steel
Specifications Flows
Horsepower x 0.25 = 2-5 GPM (bearing oil cooling) = Oil FlowCompressor Horsepower x 4.5 = SCFM Air Flow
Specifications Maximum Working Pressure
250 psi
Specifications Mounting Brackets Material
Powder Painted Steel
Specifications Net Weight
755 lb
Specifications Note For Dimension H
SAE 4-Bolt Flanges. May be converted to NPT by adding - AD to the end of the model code.
Specifications Shipping Weight
840 lb
Specifications Shroud Material
Powder Painted Steel
Technical Specifications Maximum Working Temperature
250 ºF
