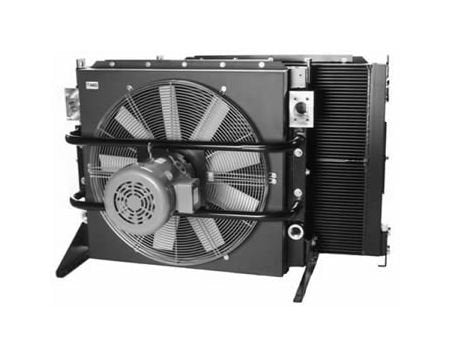

Enhance your rotary air compressor's performance with the AKG AOC Series Aftercoolers/Oil Coolers. This complete package includes an aftercooler, oil cooler, fan, motor, guards, and mounting brackets, making it ideal for converting water-cooled compressors to air-cooled systems or for remote mounting. With durable aluminum construction, powder-painted steel components, and efficient heat removal features, this cooler ensures optimal performance and longevity for 50-75 hp compressors. Additionally, the Canadian Registry Numbers availability adds to its versatility and compliance with industry standards.
Product Specifications
Electric Motor Data Frequency 1
60 Hz
Electric Motor Data Frequency 3
50 Hz | 60 Hz
Electric Motor Data Full Load Current At 230 V 1
10.0 A
Electric Motor Data Full Load Current At 230 V 3
6.2 A
Electric Motor Data Motor Frame
NEMA 56C
Electric Motor Data Power
2 hp
Electric Motor Data Speed
1725 rpm
Electric Motor Data Voltage 1
115 V | 230 V
Electric Motor Data Voltage 3 50 Hz
190 V | 200 V | 208 V | 380 V | 400 V | 416 V
Electric Motor Data Voltage 3 60 Hz
203-230 V | 460 V
Features 0
Complete Package includes aftercooler/oil cooler, fan, motor, guards and mounting brackets.Convert Water cooled compressors to air cooled. Eliminate corrosion and expensive water bills.Remote Mount the cooling package from the compressor to reduce noise, or to a cleaner, cooler, more convenient location.Canadian Registry Numbers Available
Financing Approve Payments
Finance with Approve Payments
Heat Removal 0
Oil Cooler = Compressor Horsepower x 1.15 (motor service factor) x 0.83 (this assumes 83% of input horsepower is rejected to heat)Aftercooler = Compressor Horsepower x 1.15 (motor service factor) x 0.17 (this assumes 17% of input horsepower is rejected to heat)
Note 0
Electric motors are totally enclosed, and are not thermally protected.Actual ratings vary with motor brand. Check motor nameplate for actual ratings.Motor RPM is reduced by 1/6 for 50 Hz service.
Specifications Air Compressor Horsepower
50 to 75 hp
Specifications Alternate
X-AOC75
Specifications Ambient Air Temperature
+100 ºF = Compressor Oil Inlet Temperature. | +15 ºF = Compressor Air Outlet Temperature.
Specifications Cooler Material
Aluminum

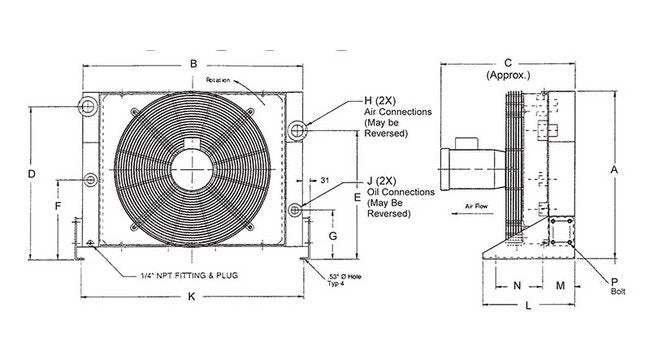

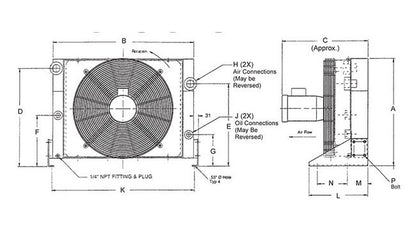

Specifications Dimension A
28.19 in
Specifications Dimension B
37.00 in
Specifications Dimension C
22.60 in
Specifications Dimension D
25.79 in
Specifications Dimension E
21.69 in
Specifications Dimension F
13.50 in
Specifications Dimension G
8.35 in
Specifications Dimension H
2.00 in NPT
Specifications Dimension J
1.25 in NPT
Specifications Dimension K
37.48 in
Specifications Dimension L
15.47 in
Specifications Dimension M
5.40 in
Specifications Dimension N
7.87 in
Specifications Dimension P
M12 x 20 BOLT (8PL)
Specifications Fan Blade Material
Aluminum Hub | Polypropylene Blades
Specifications Fan Guard Material
Zinc Plated Steel
Specifications Flows
Horsepower x 0.25 = 2-5 GPM (bearing oil cooling) = Oil FlowCompressor Horsepower x 4.5 = SCFM Air Flow
Specifications Maximum Working Pressure
250 psi
Specifications Mounting Brackets Material
Powder Painted Steel
Specifications Net Weight
200 lb
Specifications Shipping Weight
250 lb
Specifications Shroud Material
Powder Painted Steel
