AKYR Class 125 Bronze Y-Pattern Swing Check Valve

Name: AKYR Class 125 Bronze Y-Pattern Swing Check Valve
Brand: Caylor Industrial Sales, Inc.
SKU: VAL-8e2784
Price: 89.99 USD
Availability: OutOfStock

SKU:VAL-8e2784

High-quality AKYR Class 125 Bronze Y-Pattern Swing Check Valve for reliable fluid control in industrial applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The AKYR Class 125 Bronze Y-Pattern Swing Check Valve is a durable and reliable valve suitable for a variety of industrial applications. Constructed with high-quality bronze material, this valve features a screw cap, integral seat, and Y-pattern swing type disc for optimal performance. With a maximum pressure rating of 125 PSI and temperature range up to 406°F for fluids and 353°F for saturated steam, this valve ensures efficient flow control. Compliant with ANSI and MSS standards, this valve is designed for threaded ends and meets military specifications for reliability.

Product Specifications

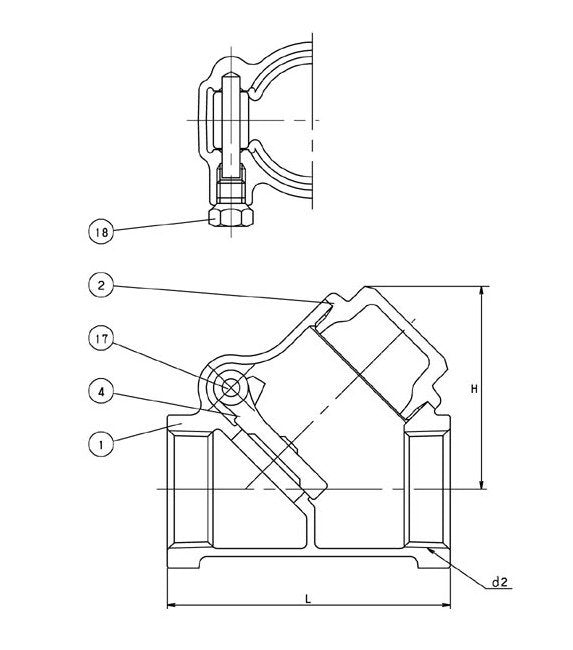

Material List 0

No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)

Specifications Approx Net Wt

7.67

Specifications Carton Qty

Specifications Class

AKYR

Specifications Dimension D1 Max

2.633

Specifications Dimension D1 Min

2.628

Specifications Dimension D2

2 1/2 inches

Specifications Dimension H

4.49

Specifications Dimension L

6.14

Specifications Dimension L1

4.69

Specifications End Size

Threaded

Specifications Material

Bronze

Specifications Pressuretemperature

125 PSI - Fluid to 406Â°F | 125 PSI - Saturated Steam to 353Â°F | 200 PSI - Non-Shock Cold Water, Oil or Gas

Standard 0

End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
