All Electronics Hardware 40 Dimension H Standard Quarter Turn Cam
All Electronics Hardware 40 Dimension H Standard Quarter Turn Cam
SKU:IND-29b522
Enhance industrial locking systems with the All Electronics Hardware 40 Dimension H Standard Quarter Turn Cam. Durable Mild Steel construction with Zinc Plated finish. Ideal for secure quarter turn operations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
All Electronics Hardware 40 Dimension H Standard Quarter Turn Cam
$24.99
Quantity: 1
Claim Your Seller Account
All Electronics Hardware 40 Dimension H Standard Quarter Turn Cam
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

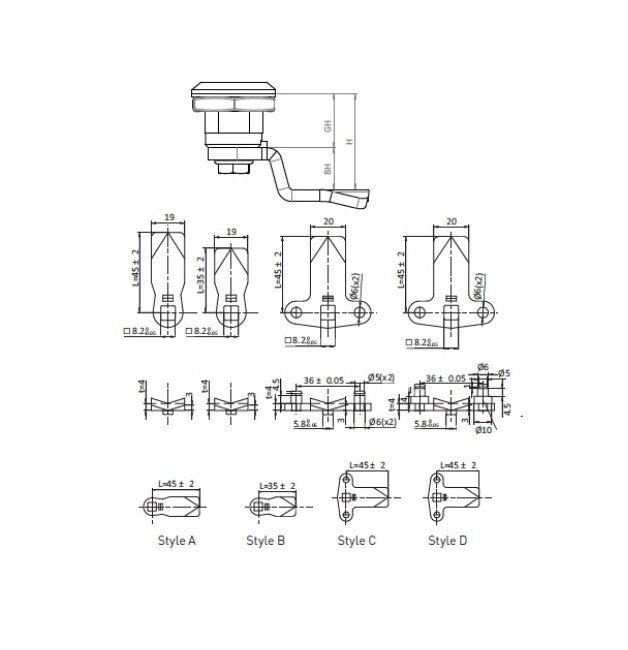

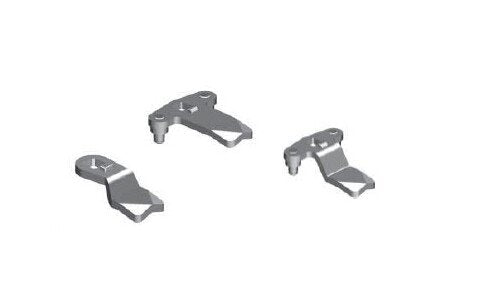

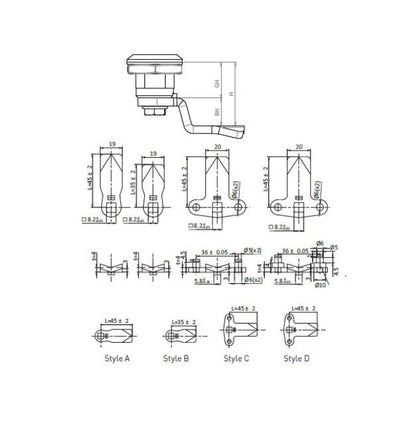

The All Electronics Hardware 40 Dimension H Standard Quarter Turn Cam offers superior functionality for industrial applications. Made of Mild Steel with Zinc Plated surface finish, this cam features a Style D design with BH of 22. With dimensions tailored for GH values ranging from 18 to 60, it ensures precise locking mechanisms. The cam's 3mm ramps provide smooth operation, while the built-in stop enhances security for quarter turns without internal restraints. Stainless Steel variant available upon request.
Product Specifications
Specifications Bh
22
Specifications Dimension H At Gh18 Standard
40
Specifications Dimension H At Gh30
52
Specifications Dimension H At Gh36
58
Specifications Dimension H At Gh40
62
Specifications Dimension H At Gh50
72
Specifications Dimension H At Gh60
82
Specifications Material
Mild Steel
Specifications Note
Stainless Steel available on request.
Specifications Style
D
Specifications Surface Finish
Zinc Plated
