All Electronics Hardware Standard Quarter Turn Cam - Style A, Dimension H at GH=18

Name: All Electronics Hardware Standard Quarter Turn Cam - Style A, Dimension H at GH=18
Brand: All Electronics Hardware
SKU: IND-d753d0
Price: 24.99 USD
Availability: OutOfStock

SKU:IND-d753d0

Industrial-grade Standard Quarter Turn Cam for reliable security solutions in various dimensions. Mild Steel with Zinc Plated finish, multiple sizes available. Stainless Steel option upon request.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

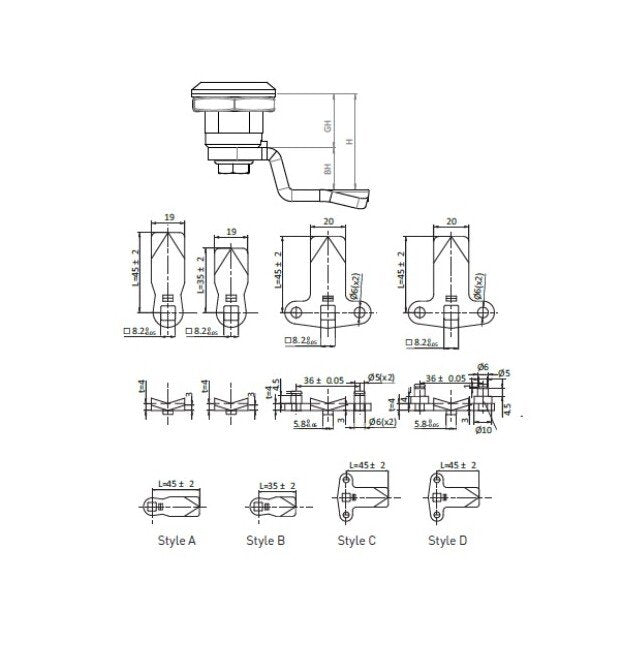

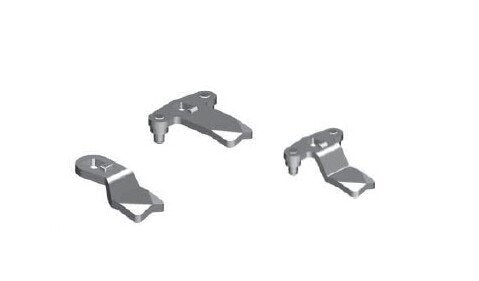

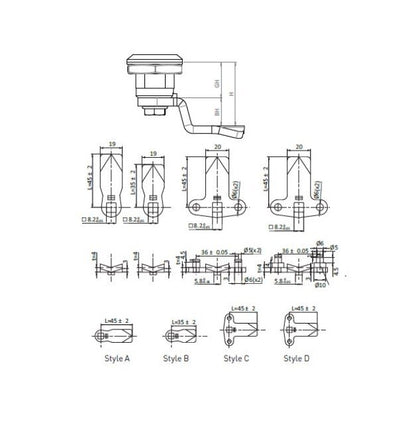

The All Electronics Hardware Standard Quarter Turn Cam in Style A is designed for industrial-grade security solutions. Crafted from Mild Steel with Zinc Plated finish, this cam offers precise 3mm ramps and a specific BH of -8. With H = GH + BH formula, this cam ensures reliable performance for quarter turns without internal restraints. Available in various dimensions, including 10, 22, 28, 32, 42, and 52 to meet diverse needs. Stainless Steel variant offered upon request for enhanced durability and longevity.

Product Specifications

Specifications Bh

-8

Specifications Dimension H At Gh18 Standard

Specifications Dimension H At Gh30

Specifications Dimension H At Gh36

Specifications Dimension H At Gh40

Specifications Dimension H At Gh50

Specifications Dimension H At Gh60

Specifications Material

Mild Steel

Specifications Note

Stainless Steel available on request.

Specifications Style

Specifications Surface Finish

Zinc Plated
