Alliance LVDT Sensor, 1/2in OD, 2in Stroke, 0-10V DC Output
Alliance LVDT Sensor, 1/2in OD, 2in Stroke, 0-10V DC Output
SKU:DCT-acad50
High-precision Alliance LVDT Sensor for accurate linear measurements in industrial settings.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Alliance LVDT Sensor, 1/2in OD, 2in Stroke, 0-10V DC Output
$189.99
Quantity: 1
Claim Your Seller Account
Alliance LVDT Sensor, 1/2in OD, 2in Stroke, 0-10V DC Output
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

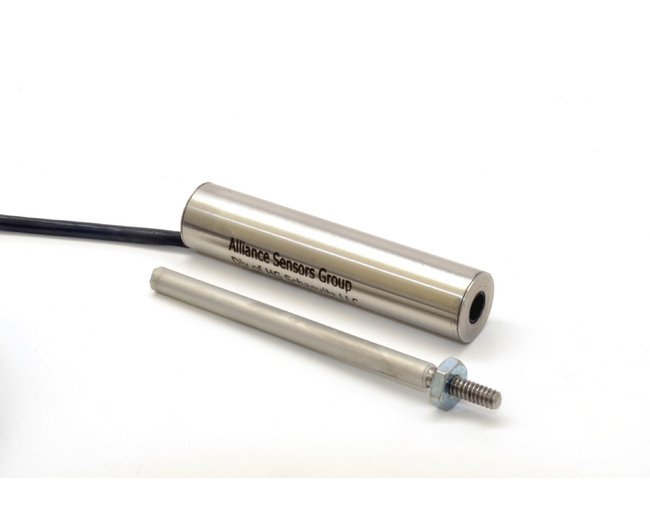

Enhance your measurement accuracy with the Alliance Sensors Group LVDT Sensor. This sensor features a 2in stroke, 0-10V DC output, and stainless steel body for durability. With a temperature range of -40 to 105 ºC and CE approval, it ensures reliable performance in diverse environments. The Alliance LVDT Sensor is ideal for industrial applications requiring precise linear measurements and robust construction.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
1/2 in
Technical Specs Range
2 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
2 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
