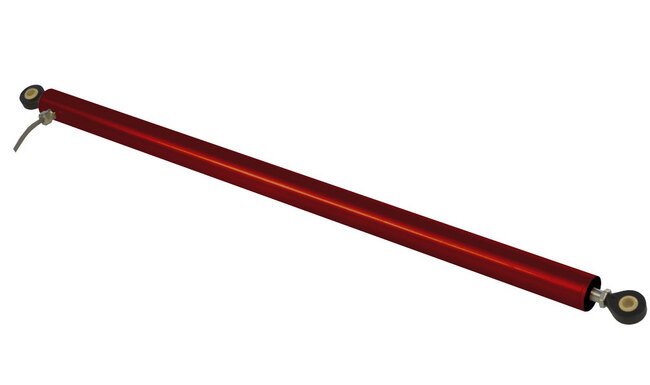

Alliance Sensors Group 27mm Linear Potentiometer Replacement Sensor

Name: Alliance Sensors Group 27mm Linear Potentiometer Replacement Sensor
Brand: Alliance Sensors Group
SKU: LIN-444fcb
Price: 49.99 USD
Availability: OutOfStock

SKU:LIN-444fcb

Upgrade your linear potentiometer with Alliance Sensors Group 27mm sensor for precise and reliable measurements.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your linear potentiometer with this 27mm outside diameter replacement sensor from Alliance Sensors Group. Featuring a 16-inch stroke and 4 to 20mA output current, this sensor ensures precise measurements with high linearity (<0.25% of full scale) and resolution (0.025% of full scale). The aluminum body and CE approval guarantee durability and compliance, making it ideal for a wide range of applications. Trust in the quality and accuracy of Alliance Sensors Group for your sensing needs.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Cable Type

Radial

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Aluminum Body

Technical Specs Output Current

4 to 20 mA

Technical Specs Outside Diameter

27 mm

Technical Specs Range

16 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

16 in

Technical Specs Temperature Range

-20 to 85 ºC

Technical Specs Termination

1 m Cable

Technical Specs Type

Rod Ends

Technical Specs Update Rate

300 Hz

Alliance Sensors Group 27mm Linear Potentiometer Replacement Sensor
