Alliance Sensors Group 27mm Linear Potentiometer Replacement Sensor

Name: Alliance Sensors Group 27mm Linear Potentiometer Replacement Sensor
Brand: Alliance Sensors Group
SKU: LIN-e09c95
Price: 149.99 USD
Availability: OutOfStock

SKU:LIN-e09c95

Upgrade to Alliance Sensors Group 27mm Linear Potentiometer Sensor for precise position sensing in industrial applications.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

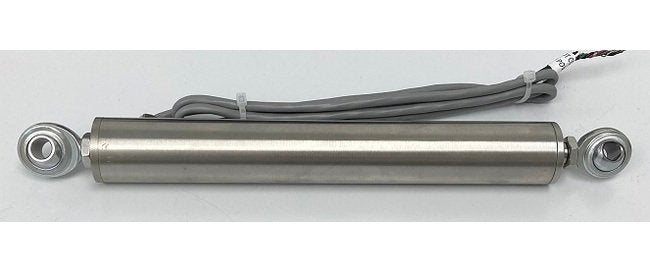

The Alliance Sensors Group 27mm Linear Potentiometer Replacement Sensor is a top-of-the-line solution for precise position sensing. With a stroke of 16 inches and an output range of 0 to 10 volts, this sensor offers unrivaled accuracy (<0.25% of Full Scale) and exceptional resolution (0.025% of Full Scale). Designed with a durable stainless steel body and CE approval, this sensor guarantees reliable performance in demanding environments. The radial cable type and one-meter cable length provide flexibility in installation, making it an ideal choice for industrial applications requiring high performance and durability.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Cable Length

1 m

Technical Specs Cable Type

Radial

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Stainless Steel Body

Technical Specs Output Direct Current Dc Voltage

0 to 10 V

Technical Specs Outside Diameter

27 mm

Technical Specs Range

16 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

16 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Type

Rod Ends

Technical Specs Update Rate

300 Hz

Alliance Sensors Group 27mm Linear Potentiometer Replacement Sensor
