Alliance Sensors Group 27mm Linear Potentiometer Sensor
Alliance Sensors Group 27mm Linear Potentiometer Sensor
SKU:LIN-a76f84
Get precise linear motion sensing with Alliance Sensors Group 27mm linear potentiometer sensor - ideal for industrial applications. 16in stroke, 0-10V output DC voltage range, CE approved, high accuracy, and fast update rate.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Alliance Sensors Group 27mm Linear Potentiometer Sensor
$129.99
Quantity: 1
Claim Your Seller Account
Alliance Sensors Group 27mm Linear Potentiometer Sensor
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

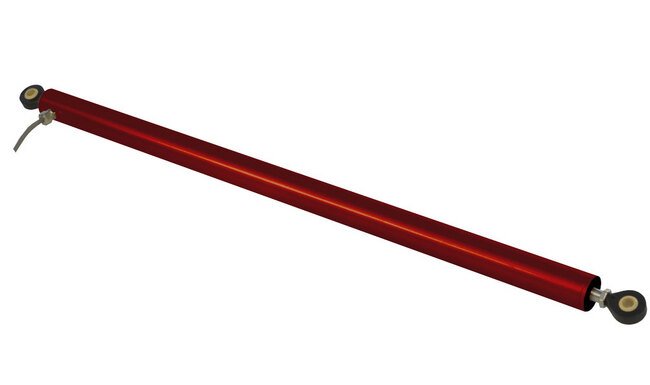

The Alliance Sensors Group 27mm Linear Potentiometer Replacement Sensor features a robust aluminum body with durable rod ends, ensuring precise linear motion sensing. With an impressive stroke length of 16 inches and a 0 to 10V output DC voltage range, this sensor delivers accurate and reliable performance in diverse industrial applications. Its European Conformity (CE) approval guarantees compliance with stringent quality standards, while the -40 to 105°C temperature range ensures operational reliability in challenging environments. Experience exceptional linearity (<0.25% of full scale) and high resolution (0.025% of full scale) with a rapid 300 Hz update rate, making this sensor an ideal choice for demanding institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
27 mm
Technical Specs Range
16 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
16 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
