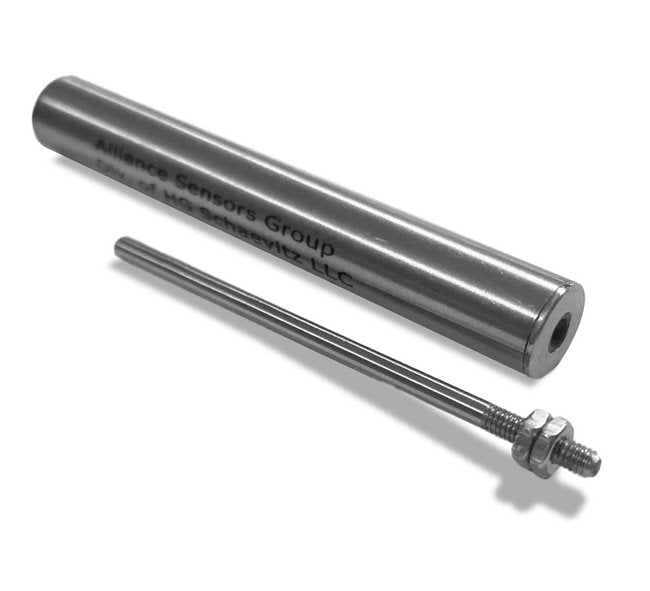

Alliance Sensors Group 3/8in DC LVDT Sensor
Alliance Sensors Group 3/8in DC LVDT Sensor
SKU:DCT-c8dd8d
High-precision 3/8in DC LVDT Sensor for accurate linear displacement measurement in industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Alliance Sensors Group 3/8in DC LVDT Sensor
$249.99
Quantity: 1
Claim Your Seller Account
Alliance Sensors Group 3/8in DC LVDT Sensor
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Alliance Sensors Group 3/8 Inch Outside Diameter DC Linear Variable Differential Transformer Sensor is a precise and durable solution for measuring linear displacement. With a stroke of 0.500 inches and a 0 to 10 Volt output, this sensor offers exceptional accuracy, with a linearity of <0.25% of Full Scale. Constructed with a stainless steel body and European Conformity (CE) approved, it ensures reliability in temperatures ranging from -40 to 105 ºC. Ideal for industrial applications requiring high-resolution sensing, this sensor is a superior replacement for linear potentiometers, meeting the demanding standards of institutional and government procurement.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/8 in
Technical Specs Range
0.500 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
0.500 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
