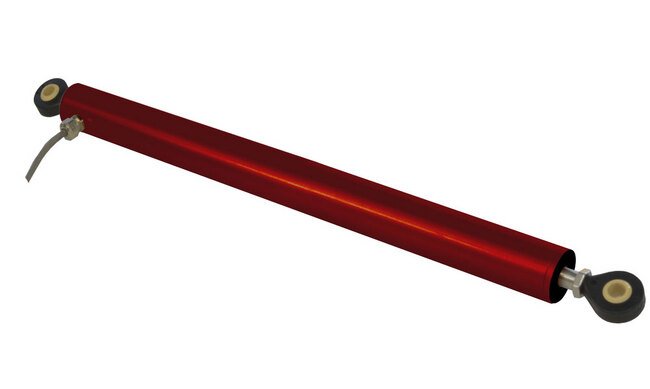

Alliance Sensors Group Linear Potentiometer Sensor - 27mm OD, 3 Inch Stroke, 4-20mA Output
Alliance Sensors Group Linear Potentiometer Sensor - 27mm OD, 3 Inch Stroke, 4-20mA Output
SKU:LIN-f2d069
Upgrade to Alliance Sensors Group Linear Potentiometer Sensor for precise data collection. 27mm OD, 3-inch Stroke, 4-20mA Output.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Alliance Sensors Group Linear Potentiometer Sensor - 27mm OD, 3 Inch Stroke, 4-20mA Output
$59.99
Quantity: 1
Claim Your Seller Account
Alliance Sensors Group Linear Potentiometer Sensor - 27mm OD, 3 Inch Stroke, 4-20mA Output
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance monitoring precision with the Alliance Sensors Group Linear Potentiometer Replacement Sensor. Designed with a 27mm Outside Diameter and a 3-inch Stroke, it ensures accurate measurements. The output current ranges from 4 to 20mA for reliable data transmission. With a temperature range of -20 to 85°C, high linearity of <0.25% of Full Scale, and CE approval, this sensor guarantees top-notch performance in various environments. The aluminum body construction and radial cable termination offer durability and easy installation, making it an ideal choice for industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
27 mm
Technical Specs Range
3 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
3 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
