Allis Chalmers Remanufactured 4-Spool Hydraulic Control Valve
Allis Chalmers Remanufactured 4-Spool Hydraulic Control Valve
SKU:CHE-539de9
Enhance hydraulic systems with our precision Allis Chalmers Remanufactured 4-Spool Valve. Rebuilt to OEM standards for dependable performance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Allis Chalmers Remanufactured 4-Spool Hydraulic Control Valve
$349.99
Quantity: 1
Claim Your Seller Account
Allis Chalmers Remanufactured 4-Spool Hydraulic Control Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your hydraulic system with our Allis Chalmers Remanufactured 4-Spool Hydraulic Control Valve. This valve is meticulously rebuilt, repaired, and reconditioned to meet or exceed all original specifications. With robust construction and precise engineering, it ensures efficient hydraulic control for a variety of applications. Trust in the quality and reliability of Allis Chalmers for optimal performance.
Product Specifications
Key Features And Benefits 0
Robust Wide Pattern Body in PVC â No Need for Spacers or specialty flanges. One-Piece Disc and Shaft Design Designed for ANSI150 and PN10 Flanges High Cv Rating Equal to Metal Check Valves Lower Closing Pressure Than Swing Check Valves Integral Bolt Eyes for Ease of Installation for Large Sizes Can be Installed in Vertical or Horizontal Position FPM or EPDM Gasket and Face Seal Pressure Rated to 150 PSI / PN10 In All Sizes
Materials 0
PVC per ASTM D1784 Cell Class 12454 CPVC per ASTM D1784 Cell Class 23447 GFPP per ASTM D4101 Cell Class 85580 FPM and EPDM Gasket and Disc Seals
Options 0
316 Stainless Steel or Hastelloy® Disc Spring Return

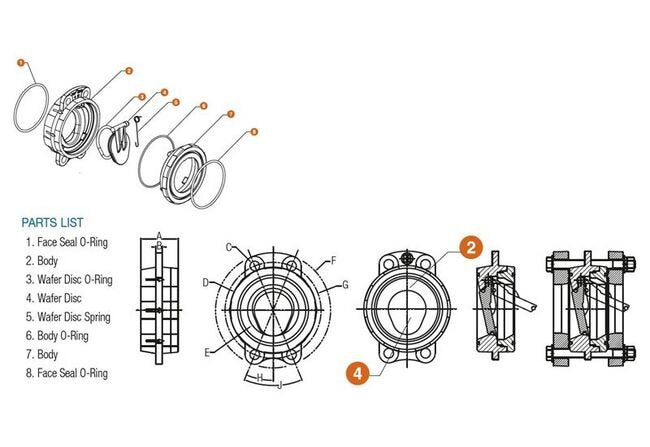

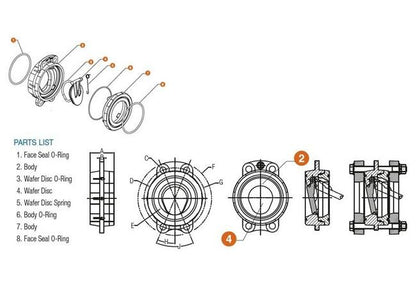

Specifications A
2.90 in | 73.66 mm
Specifications B
0.50 in | 12.70 mm
Specifications C
0.75 in | 19.05 mm
Specifications D
6.75 in | 171.45 mm
Specifications E
4.00 in | 101.60 mm
Specifications F
9.00 in | 228.60 mm
Specifications Flow Capacity Cv
315
Specifications G
0.75 in | 19.05 mm
Specifications H
22.5 º
Specifications J
45 º
Specifications Material
CPVC
Specifications Opening Pressure Estimated
1 psi
Specifications O Rings Seals
FPM

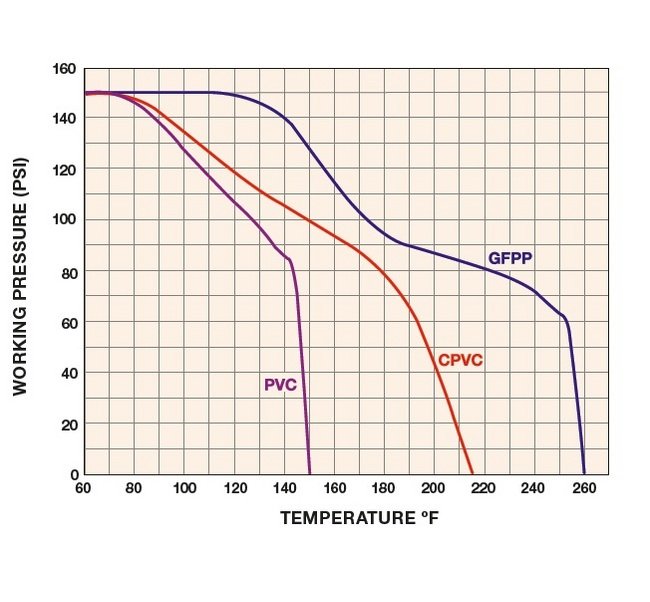

Specifications Pressure Rating
150 psi at 70°F Non-Shock
Specifications Sealing Pressure With Or Without Spring
3 psi
Specifications Size
4"
Specifications Spring Material
316 Stainless Steel
Specifications Weight
1.69 kg | 3.73 lb
Applications 0
Water and Wastewater Treatment Water / Theme Parks Chemical Processing Aquatic and Animal Life Support Systems Marine and Corrosive Environments Mining Landfills
