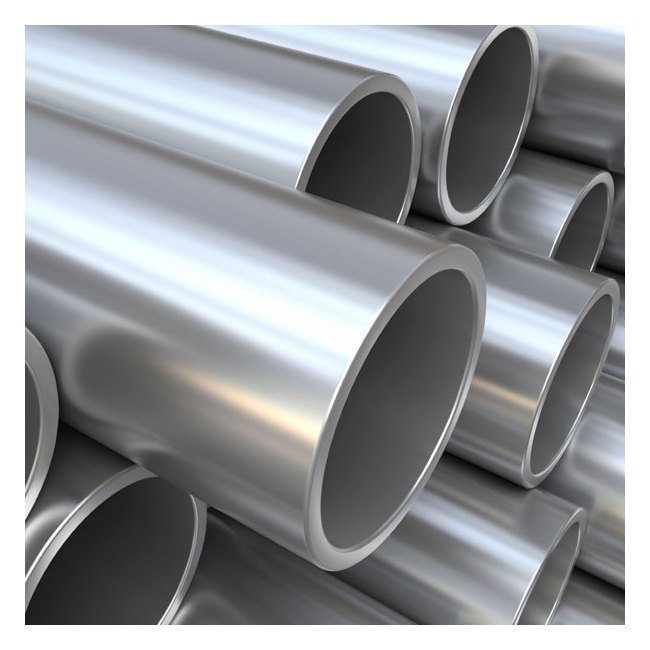

Alloy 20 Seamless/Welded Pipe - 5 Inch Sch. 120

Name: Alloy 20 Seamless/Welded Pipe - 5 Inch Sch. 120
Brand: Continental Steel & Tube Co.
SKU: NIC-54ed65
Price: 79.99 USD
Availability: OutOfStock

SKU:NIC-54ed65

Discover the superior corrosion resistance of Alloy 20 Seamless/Welded Pipe - perfect for industrial applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Alloy 20 Seamless/Welded Pipe in 5 Inch Sch. 120 is an austenitic nickel-iron-chromium super alloy, ideal for corrosive environments with heavy processing of sulfuric, phosphoric, or nitric acids. This pipe offers superior corrosion, crevice, and pitting resistance, making it a preferred choice for various industrial applications. With a composition that includes copper and molybdenum, this pipe meets ASTM, ASME, ISO, and DIN standards, allowing for versatile usage in food production, chemical processing, and synthetic material transport.

Product Specifications

Additional Information Additional Information

Its combination of 31-44% Fe, 32.5-35% Ni, 19-21% Cr, 3-4% Cu, and 2-3% Mo yield elevated mechanical properties that allow for easy fabrication. It can also be used in TIG, MIG, or SAW welding applications or easily formed through hot and cold working. Alloy 20, Carpenter 20, and IncoloyÂ® 20 piping systems are manufactured worldwide for process piping, mixing tanks, heat exchangers, pickling equipment, pumps, or any facility that requires corrosion resistant piping for synthetic material transport.When compared to other steels in this category, some debate exists as to whether or not Alloy 20 is classified as a nickel or stainless steel alloy due to its higher degree of nickel content. Regardless of this dispute, our Alloy 20 piping line has proven its performance by serving an array of industrial applications. It also meets or exceeds over 44 different industry standards including ASTM, ASME, ISO, and DIN, making it a versatile choice for specialized piping in a wide variety of industries.We are proud to stock and offer Nickel Alloy 20, Carpenter 20, and IncoloyÂ® 20 pipe in various shapes and sizes. Alloy 20 is also available for other mechanical or structural applications. We sell it in the form of flat bar, forging stock, hexagon, plate, sheet, strip, tube, round bar, and wire shapes.

Nickel Alloy Compositions Alloy

Alloy 20

Nickel Alloy Compositions Astm Specification

Nickel Alloy Compositions Density

8.08 g/cmÂ³ | 0.292 lbs/inÂ³

Specifications Material

Alloy

Specifications Nominal Diameter Metric

125 mm

Specifications Nominal Diameter Standard

5 inches

Specifications Od

5.563 inches | 141.3002 mm

Specifications Shapeform

Pipe

Specifications Thickness

Sch. 120

Alloy 20 Seamless/Welded Pipe - 5 Inch Sch. 120
