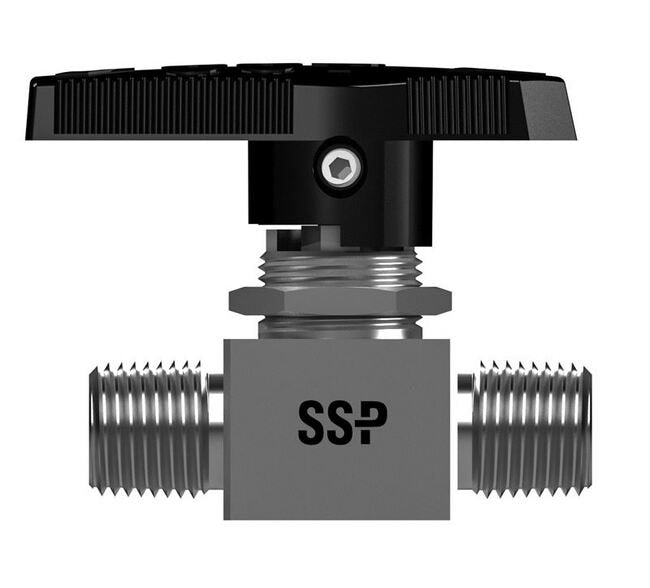

Alloy 400 2-Way Ball Valve with Modified PTFE Packing

Alloy 400 2-Way Ball Valve with Modified PTFE Packing

VAL-f14b57

Durable Alloy 400 2-Way Ball Valve with Modified PTFE Packing for high pressure and temperature operations.

$74.99
$74.99
Sale

Initiate Order

Alloy 400 2-Way Ball Valve with Modified PTFE Packing

Alloy 400 2-Way Ball Valve with Modified PTFE Packing

$74.99

Quantity: 1

Claim Your Seller Account

Alloy 400 2-Way Ball Valve with Modified PTFE Packing

Alloy 400 2-Way Ball Valve with Modified PTFE Packing

$74.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience superior performance with our Alloy 400 2-Way Ball Valve featuring 1/4-18 MNPT connections, Cv of 1.20, and green Nylon handle with Stainless Steel insert. Designed for durability, it operates under temperatures ranging from -65 to 300°F and pressures up to 3000 psig. The valve is equipped with locking hardware for added security, meeting stringent industry standards and ensuring reliable functionality in demanding applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

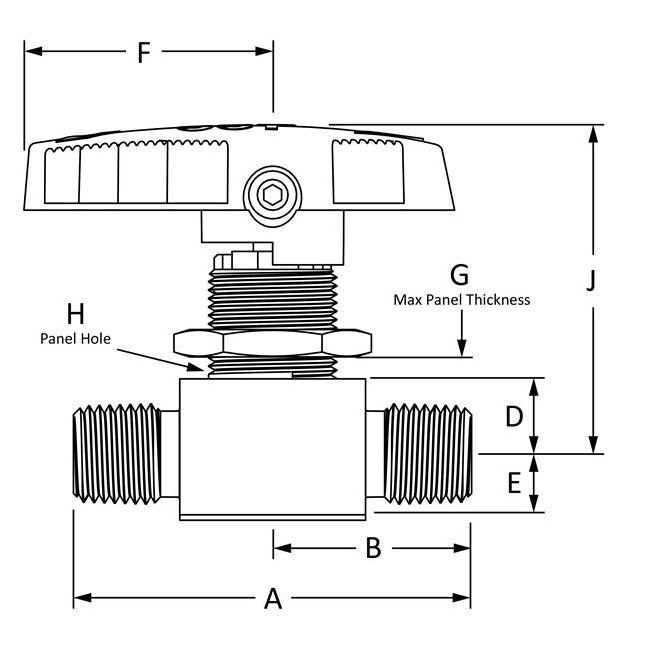

Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

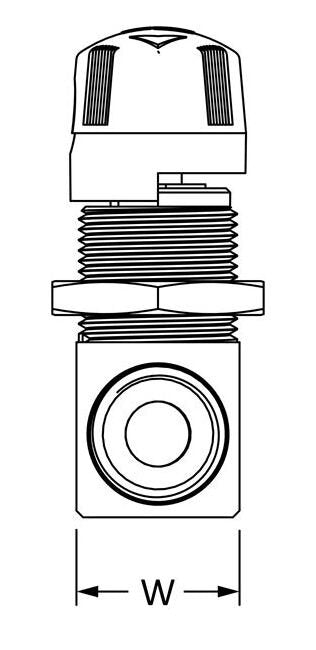

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
1.20
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
