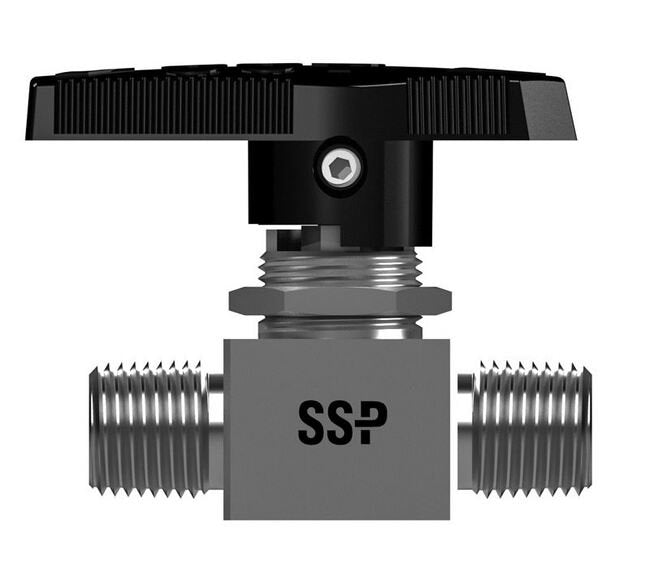

• Alloy 400 2-Way Ball Valves with Modified PTFE Packing - Image 1
  • Alloy 400 2-Way Ball Valves with Modified PTFE Packing - Image 2
  • Alloy 400 2-Way Ball Valves with Modified PTFE Packing - Image 3
1 3
SSP Fittings Corp. →

Alloy 400 2-Way Ball Valves with Modified PTFE Packing

Alloy 400 2-Way Ball Valves with Modified PTFE Packing

VAL-38e339

Premium Alloy 400 2-way Ball Valves with Modified PTFE Packing for high-pressure applications. Blue nylon handle and locking hardware for secure control.

$59.99
$59.99
Sale

Initiate Order

Alloy 400 2-Way Ball Valves with Modified PTFE Packing

Alloy 400 2-Way Ball Valves with Modified PTFE Packing

$59.99

Quantity: 1

Claim Your Seller Account

Alloy 400 2-Way Ball Valves with Modified PTFE Packing

Alloy 400 2-Way Ball Valves with Modified PTFE Packing

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your fluid control systems with our EB Series Alloy 400 2-way ball valves featuring modified PTFE packing. These valves boast durable construction with Alloy 400 body material, ensuring reliable performance under high pressures up to 3000 psig. The blue nylon handle with stainless steel insert provides effortless operation, while the locking hardware enhances security. With a Cv of 1.20 and a temperature range of -65 to 300°F, these valves are ideal for rigorous industrial applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

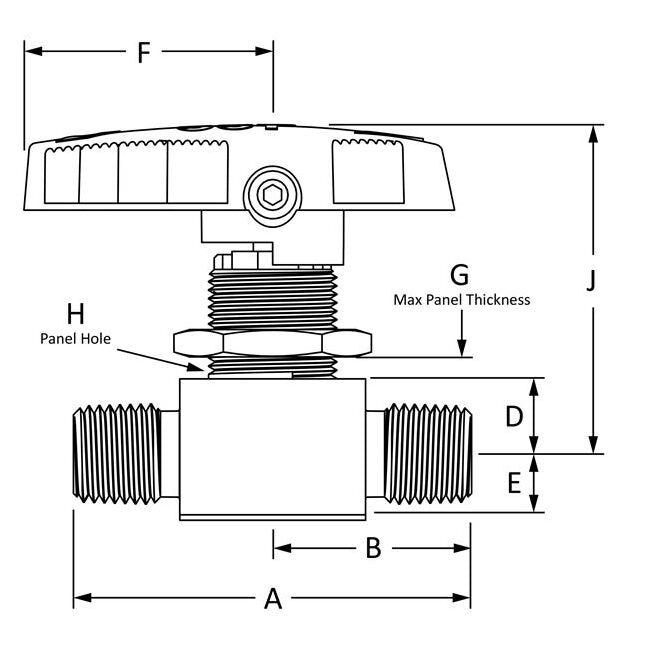

Dimensions A
2.00 in | 50.8 mm
Dimensions B
1.00 in | 25.4 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm

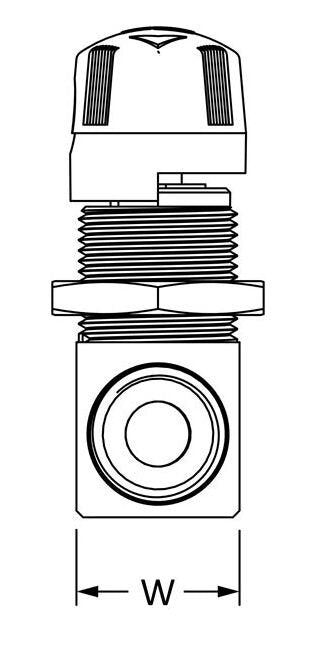

Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4-18
Specifications Connection 2 Type
MNPT
Specifications Cv
1.20
Specifications Handle Color
Blue
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
