Alloy 400 Bulkhead Male Connector - Griplok, 3/8 TF x 1/4-18 MNPT
Alloy 400 Bulkhead Male Connector - Griplok, 3/8 TF x 1/4-18 MNPT
SKU:SSP-b73513
High-quality Alloy 400 Bulkhead Male Connector for 3/8 TF x 1/4-18 MNPT connections, offering durability and precision.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Alloy 400 Bulkhead Male Connector - Griplok, 3/8 TF x 1/4-18 MNPT
$32.99
Quantity: 1
Claim Your Seller Account
Alloy 400 Bulkhead Male Connector - Griplok, 3/8 TF x 1/4-18 MNPT
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

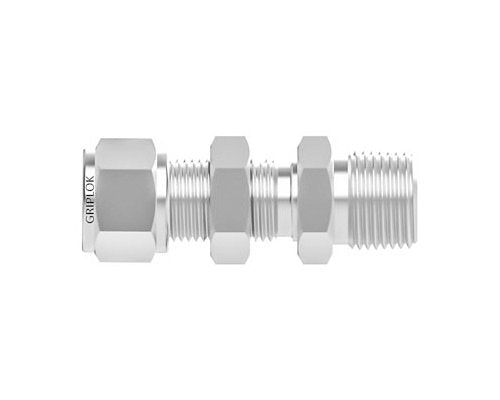

The Alloy 400 Bulkhead Male Connector from Griplok is a top-of-the-line tube fitting designed for precision and durability. Featuring a straight shape with 3/8 inch TF and 1/4-18 MNPT connections, this connector is ideal for industrial applications requiring secure and leak-free joints. Crafted with Alloy 400, known for its corrosion resistance and strength, this connector ensures reliable performance under varying conditions. With dimensions meticulously engineered for a perfect fit, this Griplok connector guarantees seamless integration and lasting performance.

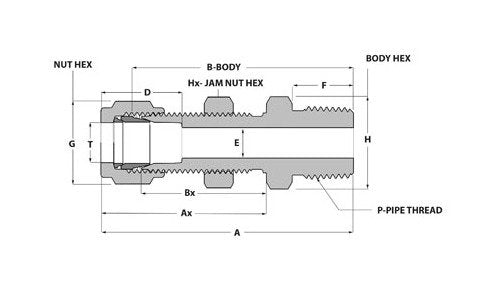

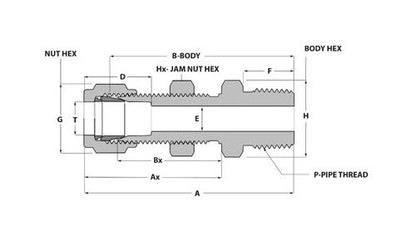

Product Specifications
Dimensions A
2.31 in
Dimensions Ax
1.45 in
Dimensions B
1.97 in
Dimensions Bx
1.16 in
Dimensions D
0.71 in
Dimensions E
0.28 in
Dimensions F
0.56 in
Dimensions G
11/16 in
Dimensions H
3/4 in
Dimensions Hx
3/4 in
Dimensions Maximum Panel Thickness
0.44 in
Dimensions P
1/4 in
Dimensions Panel Hole Drill Size
37/64 in
Dimensions T
3/8 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Griplok
Specifications Connection 1 Size
3/8 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Specifications Specialty
Bulkhead
Category 6
Griplok® Tube Fittings
